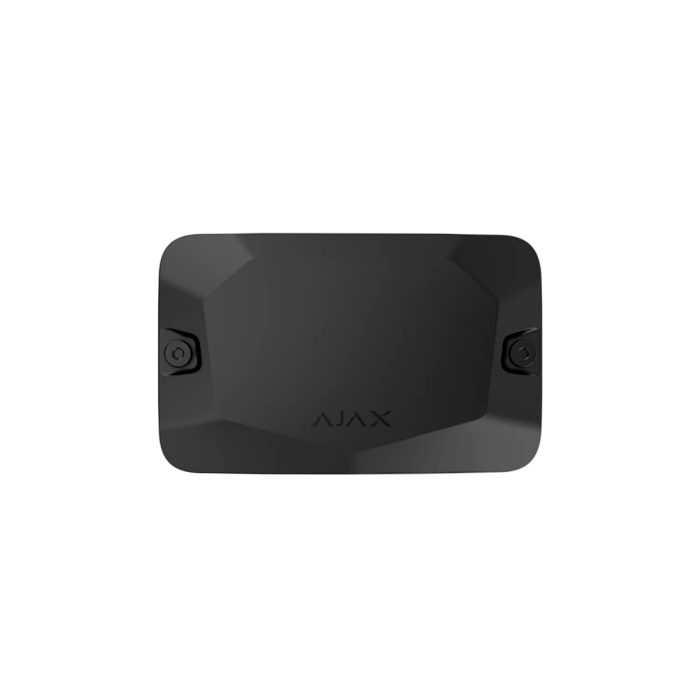

AJAFCASEAB Ajax Case A 106 Casing for Fibra Device - Black
The AJAFCASEAB is a black Ajax Case A (106) indoor casing for one compatible Ajax Fibra device. The supplied Case A sheet confirms compatibility with Superior LineSplit Fibra, Superior LineProtect Fibra and Superior MultiRelay Fibra, with plastic latches, cable fasteners, drill recesses and a bubble level for installation.
It is intended to organise and protect a single supported wired module while keeping installation practical. The included tamper board, reversible device positioning, rotatable lid and installation kit help installers complete a neat serviceable casing setup.
Key Features
- Holds one compatible Ajax Fibra module in a protected indoor casing.
- Cable management and drill guides support a neater installation.
- Included tamper board helps report sabotage of the installed device setup.
- Reversible device and lid positioning gives installers fitting flexibility.
- Supplied installation kit keeps mounting hardware together for site work.
- Catalogue Family:
- ENCLOSURES
- Product Type:
- ENCLOSURES
- Device Capacity:
- 1 DEVICE
- Compatible Devices:
- SUPERIOR LINESPLIT FIBRA; SUPERIOR LINEPROTECT FIBRA; SUPERIOR MULTIRELAY FIBRA
- Dimensions:
- 106 x 168 x 56 mm
- Weight:
- 186 g
- Operating Temperature:
- -10 DEGC TO +40 DEGC
- Operating Humidity:
- UP TO 75%
- Protection Class:
- IP20
- Complete Set:
- CASE A (106), TAMPER BOARD, INSTALLATION KIT, QUICK START GUIDE
- Colour:
- BLACK
