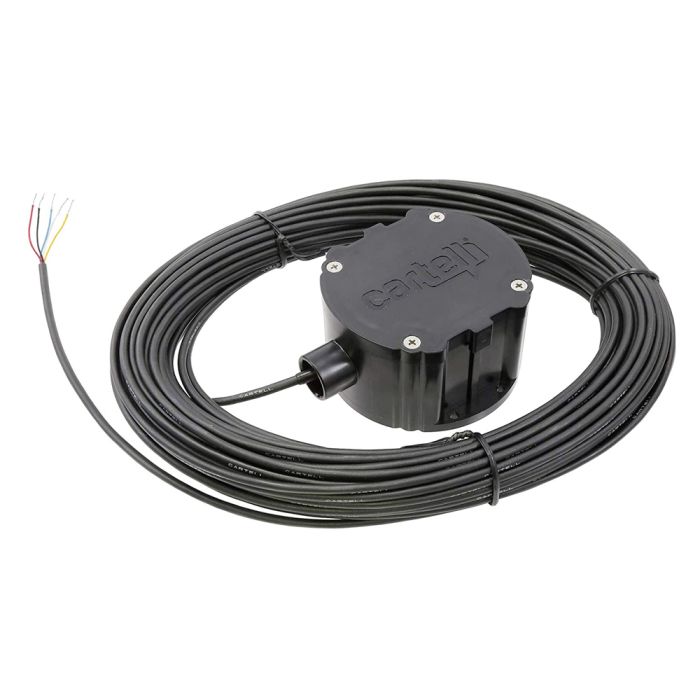

921GA-CP4 Cartell CP-4 Automatic Gate Opener Sensor
The 921GA-CP4 is a Cartell CP-4 automatic gate opener sensor for free-exit gate applications. It operates from 8 to 24 VAC or 8 to 30 VDC and features SPDT floating Form C relay contacts, an IP68-rated sensor enclosure, a 4.5 inch diameter x 2.5 inch high sensor puck, and a 100 ft cable.
Designed for automatic gate systems, the sensor detects vehicles to trigger compatible gate operators and provides adjustable sensitivity for installation flexibility.
Key Features
- Automatic gate opener sensor for free-exit gate applications.
- Operates from 8 to 24 VAC or 8 to 30 VDC.
- SPDT floating Form C relay contacts support flexible control wiring.
- IP68-rated sensor puck is suitable for buried or protected installations.
- Adjustable sensitivity supports detection tuning for site requirements.
- Catalogue Family:
- ACCESSORIES & OTHERS
- Product Type:
- Accessories & Others
- Power Required:
- 8 to 24 V AC or 8 to 30 V DC
- Standby Current:
- 30 to 70 uA
- Alarm Current:
- 30 to 40 mA
- Relay Contacts:
- SPDT floating N.O. or N.C. Form C
- Relay Contact Rating:
- 1 A / 24 VDC
- Enclosure Rating:
- IP68
- Dimensions:
- 4.5 in diameter x 2.5 in high
