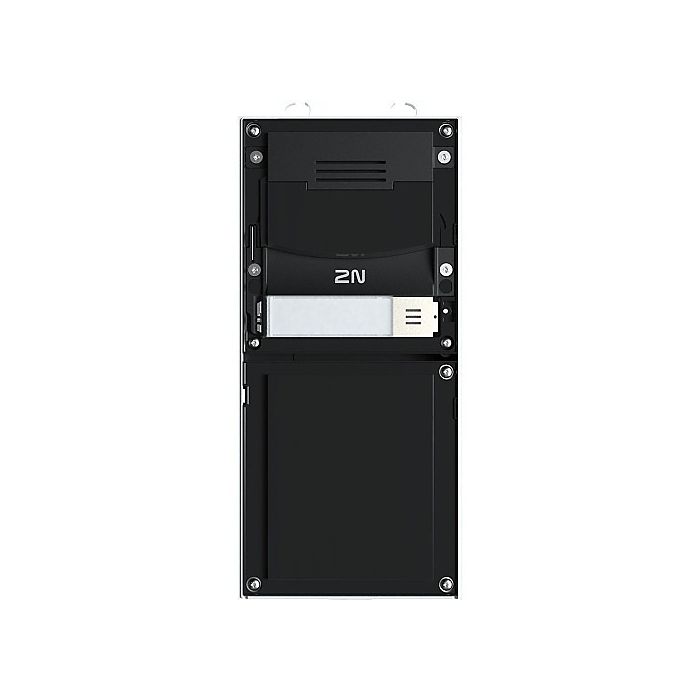

2N9155211CB 2N IP Verso 2.0 Main Unit With Full HD Camera - Black
The 2N9155211CB is the black 2N IP Verso 2.0 main unit with camera, with manufacturer code 02908-001. It provides the core modular IP intercom unit with a Full HD camera, SIP signalling, PoE and 12 V DC power support.
It is intended for modular 2N IP Verso 2.0 entrance stations where the main unit is combined with separately selected modules and mounting hardware. Reader, keypad and mounting accessories should be selected separately for the required system build.
Key Features
- Black main-unit finish supports coordinated 2N IP Verso door-station builds.
- Full HD camera capability supports clearer visitor video at the entrance.
- PoE or 12 V DC powering gives installers practical infrastructure choices.
- Modular 2N format helps adapt the door station to project-specific access needs.
- IP54 and IK08 ratings support use in appropriate entrance environments.
- Catalogue Family:
- INTERCOM
- Exact Variant Context:
- 2N IP Verso 2.0 main unit with camera, 02908-001 black
- Power Supply:
- PoE and/or 12 V / 1 A DC
- PoE Standard:
- 802.3af Class 0, 12.95 W
- LAN:
- 10/100BASE-TX with Auto-MDIX, RJ45
- Recommended Cabling:
- Cat5e or better
- Signalling Protocol:
- SIP over UDP, TCP or TLS
- Camera Resolution:
- Full HD, max. 1920 x 1080
- Camera View Angle:
- 138 deg horizontal, 105 deg vertical
- WDR:
- Yes
- Frame Cover:
- Robust zinc cast frame with black colour finish option
- Cover Rating:
- IP54
- Impact Rating:
- IK08
- Operating Temperature:
- -40 deg F to +140 deg F
- Operating Relative Humidity:
- 10%-95%, non-condensing
- Weight:
- 4.41 lb
- Product Type:
- Intercom
