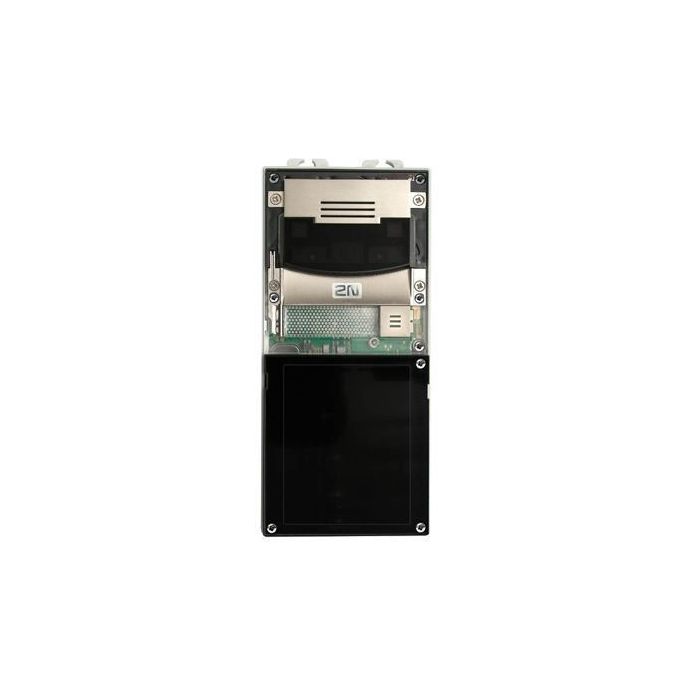

2N9155101 2N IP Verso Main Unit Without Camera Nickel
The 2N9155101 is the 2N IP Verso main unit without camera, forming the required basic unit in a modular Verso door intercom installation.
It provides the core audio intercom and access-control platform for configurations that can be expanded with modules such as keypad, card reader, infopanel, Bluetooth or touch display components.
Key Features
- Acts as the required basic unit in a modular Verso installation.
- Supports tailored door-entry builds with compatible add-on modules.
- Provides SIP-based IP intercom integration for connected sites.
- Audio platform includes a built-in microphone and 2 W speaker.
- Modular design lets installers match functions to the building need.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Required Role:
- One basic main unit in every installation
- Installation Positions:
- Basic unit requires two frame/box positions
- Signalling Protocol:
- SIP 2.0
- Power Supply:
- 12 V +/- 15% / 2 A DC or PoE
- Speaker:
- 2 W
- Coverage Level:
- IP54, IK08
