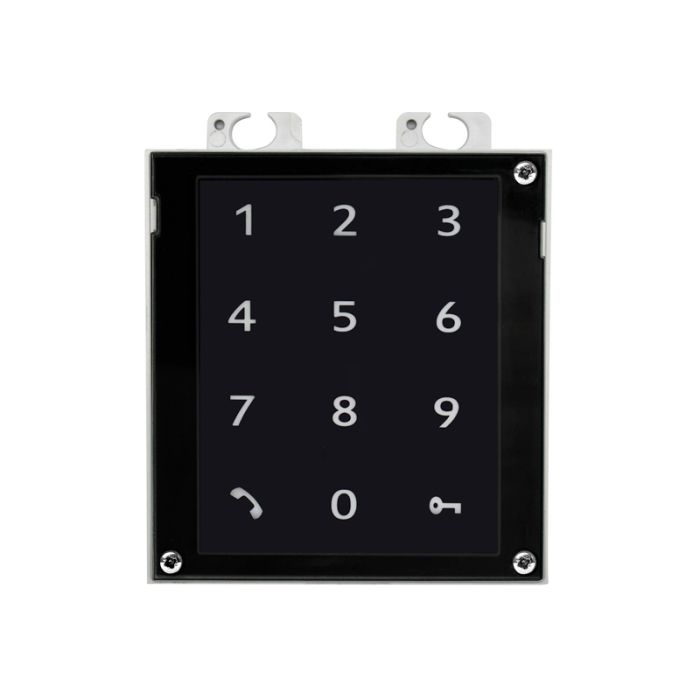

2N9155047 2N IP Verso Touch Keypad Module
The 2N9155047 is a touch keypad module for 2N IP Verso and 2N LTE Verso intercoms. It features a capacitive touch keypad for PIN-code access, user calling and code-accessible door functions.
The module supports automatic calibration, configurable backlighting, multicolour LED indication, and is rated IP54 and IK08.
Key Features
- Capacitive touch keypad
- Supports PIN-code access and numeric calling
- Automatic calibration
- Configurable backlighting and multicolour LED indication
- IP54 environmental protection and IK08 impact rating
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Compatible Range:
- 2N IP Verso and 2N LTE Verso
- Touch Technology:
- Capacitive touch layer with 0.1 pF sensitivity
- Reliability Feature:
- SmartSense Auto-tuning automatic calibration
- Operating Temperature:
- -20 deg C to 55 deg C
- Storage Temperature:
- -40 deg C to 70 deg C
- Operating Humidity:
- 10% to 95% non-condensing
- Coverage Level:
- IP54, IK08
