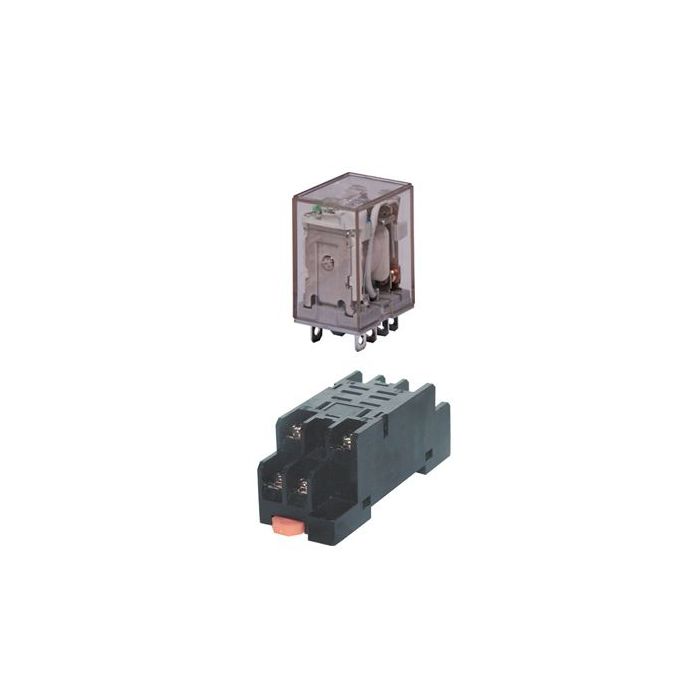

24240RELAY 24 VDC Coil 10A DPDT Cradle Relay
The 24240RELAY is a 24 VDC coil DPDT cradle relay with a 10A contact rating.
Designed for control and switching applications requiring a 24 VDC coil and DPDT contact arrangement, it supports the contact and operating specifications of the relay family.
Key Features
- 24 VDC coil for compatible low-voltage control circuits.
- DPDT contact arrangement for flexible control-panel wiring.
- 10A contact rating for switching applications.
- Compatible with relay bases for simplified panel mounting and serviceability.
- Suitable for automatic-control and machinery applications.
- Catalogue Family:
- ACCESSORIES & OTHERS
- Relay Family:
- S4310/S4312/S4314 10A DPDT cradle relays
- Coil Variant:
- S4312 24 V DC
- Max Voltage:
- 300 V AC, 30 V DC
- Max Current:
- 10 A total
- Max VA / Watts:
- 2800 VA / 280 W
- Contact Material:
- Silver cadmium oxide
- Coil Resistance:
- 640 Ohm
- Coil Power:
- 900 mW
- Pick-Up Voltage:
- 19.2 V
- Release Voltage:
- 2.4 V
- Operating Temperature:
- -40 to 70 deg C
- Product Type:
- Accessories & Others
