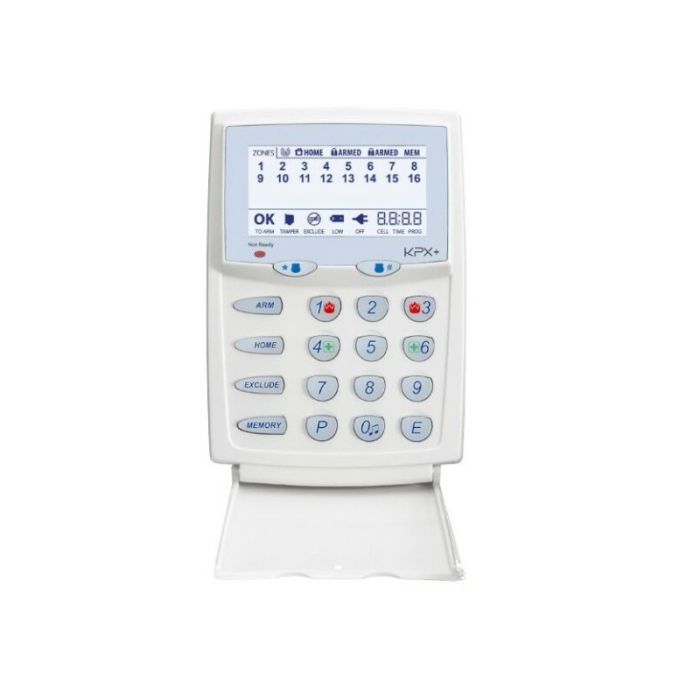

106-310 Ness KPX Plus LCD Keypad - White
The 106-310 Ness KPX Plus is a white LCD keypad designed with Ness XCEL cellular panels in mind while retaining backward compatibility with previous D8X/D16X panels. It uses a high-contrast LCD with white and red backlighting plus cellular status display context.
It suits alarm installations that need a conventional LCD keypad with clearer status indication and adjustable user feedback. The keypad can be used in mixed keypad systems within the stated cable and keypad-count limits for compatible Ness panels.
Key Features
- Gives compatible panels a clear LCD keypad interface
- Supports cellular-panel status awareness on XCEL installations
- Improves alarm-memory visibility through red backlighting
- Allows keypad tone and LCD brightness adjustment for user comfort
- Fits Ness systems where a white keypad finish is required
- Catalogue Family:
- SYSTEM COMPONENTS
- Product Type:
- System Components
- Colour:
- White
- Display Type:
- High contrast LCD, white backlit and red backlit for alarm memory
- Compatibility:
- Ness D8XCEL/D16XCEL control panels and earlier D8X/D16X panels
- Operating Voltage:
- 12 V DC from control panel
- Dimensions:
- 82 mm W x 125 mm H x 18 mm D
- Maximum Cable Length:
- 100 m all keypads combined
- Maximum Keypads:
- 3 mixed keypads or 4 Navigator keypads per system
