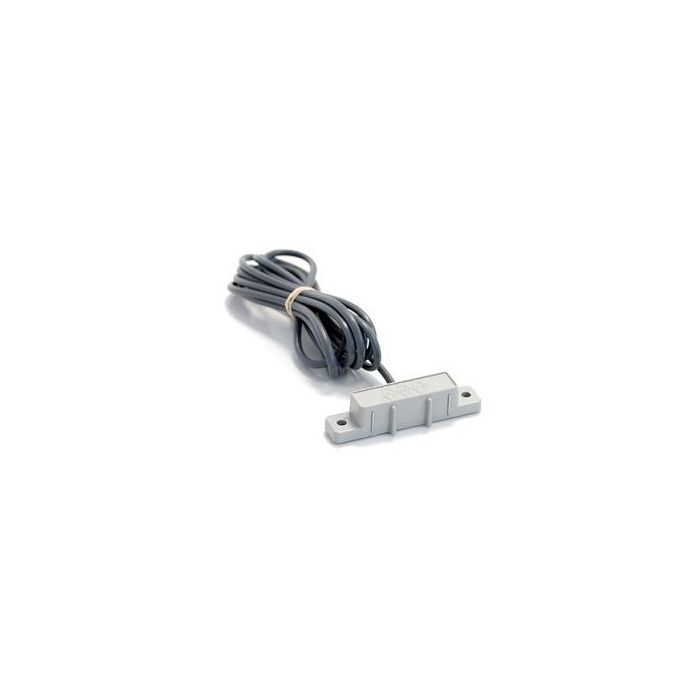

101-297 Ness Water Sensor 2600
The 101-297 is the Ness Water Sensor 2600, a 12 V DC sensor for detecting conductive non-flammable liquid. It detects moisture bridging across the sensor contacts and provides a normally closed relay signal for alarm panel or external device use.
It is suited to areas where water damage could occur, such as bathrooms, laundries, kitchens, IT equipment areas, drip pans and locations near tanks or piping. Automatic reset, a 1.8 m jacketed lead, 3 mm shallow-water detection and compatibility with hardwired alarm panels.
Key Features
- Detects conductive non-flammable liquid to help alert to water presence.
- Normally closed relay output supports connection to hardwired alarm panels.
- Automatic reset supports continued use after a water event is cleared.
- 1.8 m jacketed lead gives practical installation reach.
- No mechanical parts in the sensing method reduces reliance on moving components.
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Ordering Information:
- 101-297 NESS WATER SENSOR 2600
- Operating Voltage:
- 12 V DC
- Operating Current Draw:
- 10 mA
- Contact Resistance:
- 100 mOhm
- Switching Voltage:
- 200 V DC max
- Switching Current:
- 500 mA max
- Connections:
- Red +ve, Black -ve, Green/White relay contact
- Operating Temperature:
- -40 to 75 deg C
- Dimensions:
- 63.5 mm x 13.2 mm x 13.9 mm
