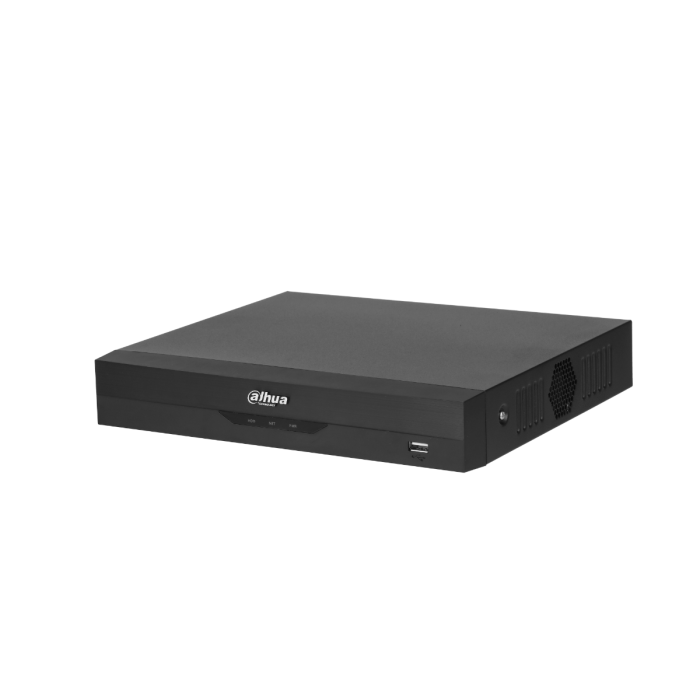

DH-XVR5108HS-I3-S3 8 Channel Penta-brid 5MP 1080P Compact 1U 1HDD WizSense Digital Video Recorder
The DH-XVR5108HS-I3-S3 is an 8 channel penta-brid 5MP/1080P compact 1U WizSense digital video recorder with 1 SATA bay. It supports HDCVI, AHD, TVI, CVBS and IP inputs, up to 12 IPC channels, 64 Mbps incoming bandwidth and Smart H.265+ and H.265 compression.
This XVR is suited to hybrid sites that need to retain coaxial camera infrastructure while adding IP camera flexibility. It supports 8-channel two-way talk over coaxial cable, AcuPick, SMD Plus, perimeter protection and face recognition, helping operators search and respond to events from a compact recorder.
Key Features
- Hybrid camera support helps extend existing coaxial systems with IP camera options.
- Two-way talk over coax supports audio communication with compatible camera channels.
- AcuPick and SMD Plus help streamline search and event filtering.
- Compact 1U design suits small equipment locations and desktop installs.
- 12 VDC power and single-drive storage keep small deployments simple.
- Catalogue Family:
- NVR
- Model:
- DH-XVR5108HS-I3-S3
- Analogue Camera Input:
- 8 BNC ports, HDCVI/AHD/TVI/CVBS auto-detect
- IP Camera Input:
- Up to 12 IPC channels, 64 Mbps incoming bandwidth
- Video Compression:
- AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
- Video Output:
- 1 x HDMI, 1 x VGA; HDMI up to 1920 x 1080
- SMD Plus:
- 8 channels by recorder or 12 channels by camera
- Acupick:
- 2 channels by recorder for 1080P
- Disk Interface:
- 1 SATA port, up to 16 TB
- Network Ports:
- 1 x 10/100 Mbps Ethernet RJ-45
- Power Supply:
- 12 VDC, 2 A
- Dimensions:
- 260.0 mm x 237.8 mm x 47.6 mm
- Operating Temperature:
- -10 deg C to +55 deg C
- Product Type:
- NVR
