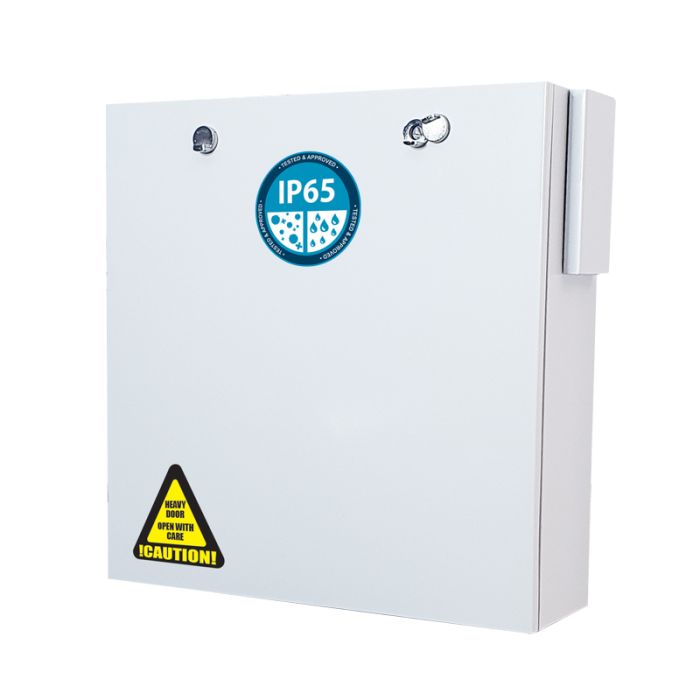

WMNVRIP65 PA-WMCAB-W Vertical Wall Mount Security Cabinet - IP65
The WMNVRIP65 is a PA-WMCAB-W vertical wall mount security cabinet for CCTV, alarm, access-control and DVR/NVR equipment with an IP65 rated cabinet design.
Suitable for compact security installations requiring lockable wall-mounted equipment storage, monitor mounting, cable management and temperature-controlled ventilation in a weather-resistant cabinet.
Key Features
- Vertical wall-mount design helps secure equipment without a full floor rack.
- IP65 rated cabinet supports environmentally challenging installations.
- Lockable dual-cabinet arrangement improves equipment control on site.
- Monitor and DVR/NVR mounting provisions support compact system builds.
- Integrated PDU and temperature-controlled fan help simplify cabinet fit-out.
- Catalogue Family:
- PSS
- Model:
- PA-WMCAB-W
- Product Type:
- PSS
- IP Rating:
- IP65
- Capacity:
- 2RU; 230-490 mm adjustable width and 460 mm depth
- Load Capacity:
- Wall mount 30 kg; hinged shelf 10 kg
- Material:
- Metal
- Cabinet Dimensions:
- 650 mm H x 585 mm W x 185 mm D closed
- Monitor Support:
- Up to 24 inch widescreen with 75 / 100 VESA mounts
- Power:
- 4 outlet PDU
- Ventilation:
- Temperature-controlled IP68 extractor fan
