W3028 Extra Heavy Duty Microphone Cable - 100 m Black Roll

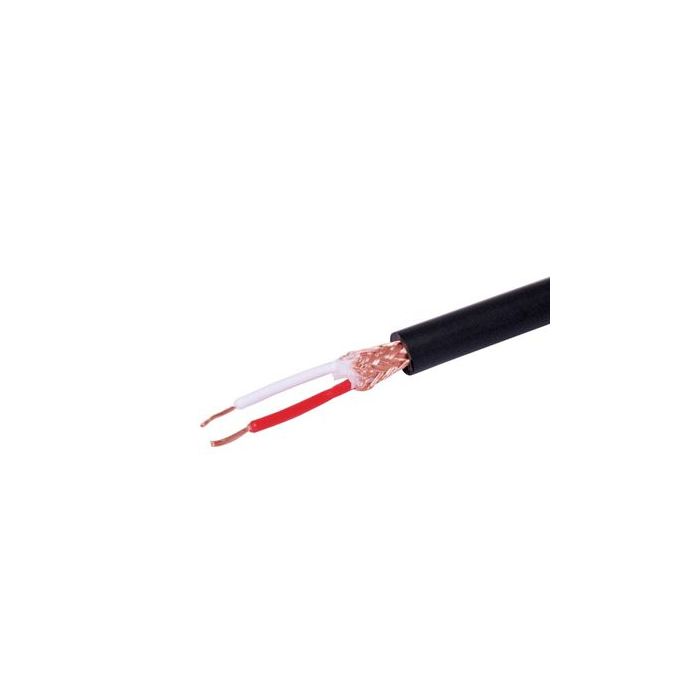

The W3028 is an extra heavy duty microphone cable supplied in a 100 m black roll. It features a soft outer sheath, two inner conductors, shielding and an outside diameter of approximately 6.0 mm.
Designed for microphone extension leads and related audio system wiring, the cable provides a flexible construction with a consistent black finish for cut-to-length installations.
Key Features
- Suitable for custom microphone extension leads and other audio cable assemblies.
- Shielded construction supports audio signal transmission.
- Soft outer sheath provides flexibility for routing and termination.
- 100 m roll allows convenient cut-to-length installation.
- Two-conductor design with an approximately 6.0 mm outside diameter.
- Catalogue Family:
- CABLE
- Catalogue Number:
- W3028
- Product Type:
- Cable
- Colour:
- Black
- Roll Length:
- 100 m
- Shielding:
- 7/16/0.12
- Inner Conductor:
- 2 x 20/0.12
- Outside Diameter:
- Approximately 6.0 mm
- Conductor Area:
- 0.22 mm2
- Gauge:
- 24 AWG
- Temperature Rating:
- 60 deg C
- Application:
- Microphone extension leads
