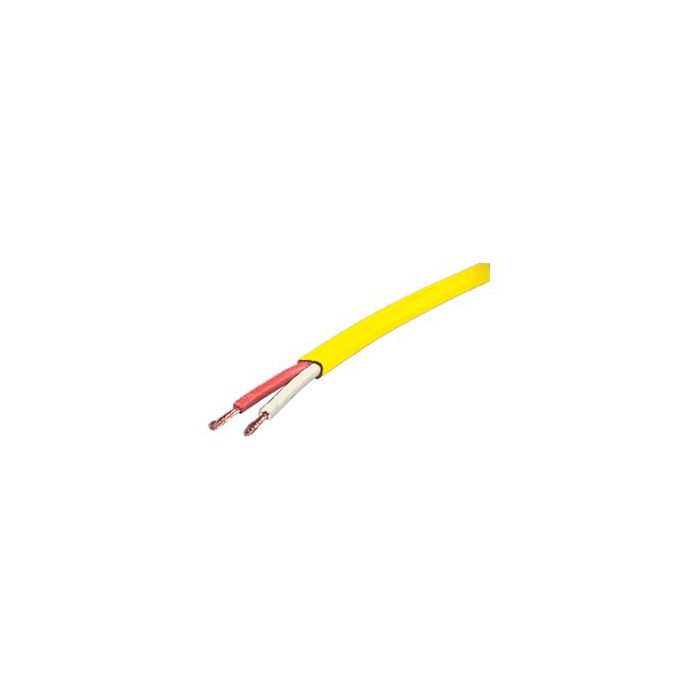

W2168 18AWG Double Insulated PA Cable Yellow - 100m
The W2168 is a yellow 18 AWG double insulated cable supplied as a 100m roll. The 18 AWG double insulated cable family uses 2 x 24/0.20, 0.75 mm2 conductors with PVC jacket material and an approximate 6 mm x 3.5 mm dimension.
Suitable for 100V line PA installations. 100m metre-marked roll with 600 V AC at 7.5 A rating, 0.0245 ohm/m conductor resistance at 20 deg C and 75 deg C temperature rating.
Key Features
- 100m metre-marked cable roll
- Double-insulated construction
- 18 AWG, 2 x 24/0.20, 0.75 mm2 conductors
- PVC jacket material
- Suitable for 100V line PA installations
- Colour:
- Yellow
- Product Type:
- Cable
