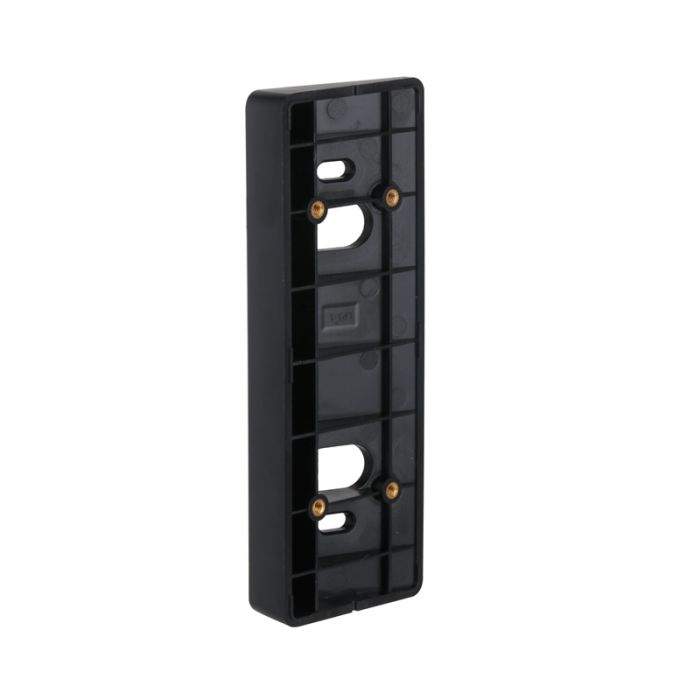

VTM22A Horizontally Inclined Bracket for VTO1000J Door Station
The VTM22A is a horizontally inclined bracket for the VTO1000J door station. It provides a 15° horizontal angle, black PC + ABS casing and dimensions of 49.63 mm x 136.35 mm x 16.57 mm.
It is useful where the supported VTO1000J door station needs a modest horizontal viewing adjustment rather than a flat installation. The bracket supports combination use with a maximum of two brackets, giving installers an angle accessory for selected site layouts.
Key Features
- Provides a 15° horizontal angle for supported VTO1000J installations.
- Helps tune door-station positioning where a straight mount is not ideal.
- Uses black PC + ABS casing for a compact matching bracket format.
- Supports combination installation with up to two brackets.
- Keeps the accessory lightweight for simple door-station mounting preparation.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Compatible Product:
- VTO1000J door station
- Horizontal Angle:
- 15°
- Casing:
- PC + ABS
- Appearance Colour:
- Black
- Dimensions:
- 49.63 mm x 136.35 mm x 16.57 mm
- Weight:
- 0.036 kg
- Gross Weight:
- 0.075 kg
