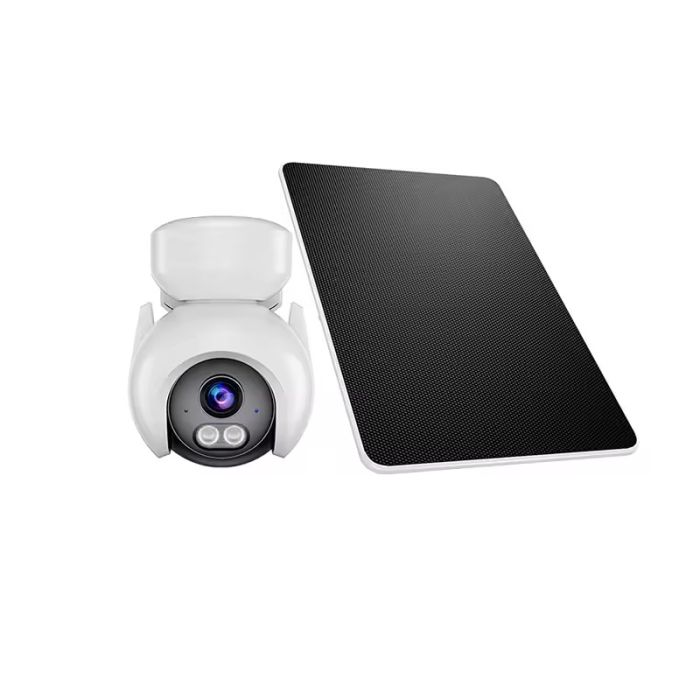

TDACS6G Tenda CS6G 4MP 4G Solar Powered AOV Pan Tilt Camera Kit
The TDACS6G is a Tenda CS6G 4 MP 4G solar-powered AOV pan/tilt camera kit supplied with a high-efficiency solar panel. It features 2560 x 1440 resolution, a 4 mm F1.0 lens, H.265 video encoding, 4G LTE Cat 1 connectivity, two-way audio and an 8000 mAh rechargeable lithium battery.
Designed for outdoor surveillance in locations such as farms, orchards and construction sites, the kit combines solar charging, IP65-rated camera and solar panel protection, human detection, motion tracking and Micro SD card storage for standalone monitoring where mains power or wired network connections are unavailable.
Key Features
- Solar-powered 4G camera kit for locations without mains power or wired networking.
- AOV recording mode for continuous scene monitoring with efficient storage usage.
- Pan and tilt functionality for wider surveillance coverage.
- Human detection, motion tracking and sound alerts for intelligent event monitoring.
- Two-way audio for remote communication through the camera.
- Catalogue Family:
- CAMERA
- Model:
- CS6G
- Product Type:
- Camera
- Image Sensor:
- 1/2.9 inch progressive scan CMOS
- Main Stream Resolution:
- 2560 x 1440
- Lens:
- 4 mm, F1.0
- Field of View:
- Horizontal 86.3 deg , vertical 54.3 deg , diagonal 93.7& deg
- Supplementary Light:
- 2 IR lights and 2 spotlights; up to 30 m / 100 ft
- Video Encoding:
- H.265
- Frame Rate:
- AOV mode: 1/5-3 fps (default 1 fps); alarm mode: 15 fps
- Pan/Tilt Range:
- Pan 0 deg -355 deg ; tilt 10 deg -100 deg
- 4G Data Rate:
- LTE Cat 1; uplink 5 Mbps; downlink 10 Mbps
- Storage:
- Supports up to 512 GB Micro SD card
- Battery:
- 8000 mAh, 29.6 Wh rechargeable lithium battery
- Solar Panel:
- 8 W BC solar cell, ETFE surface, 3 m cable, USB-C
- Protection Level:
- IP65 (camera and solar panel)
- Dimensions:
- Camera: 188.2 x 142.4 x 102 mm; Solar panel: 265 x 177 x 16 mm
- Installation Method:
- Wall, ceiling or pole mounting
