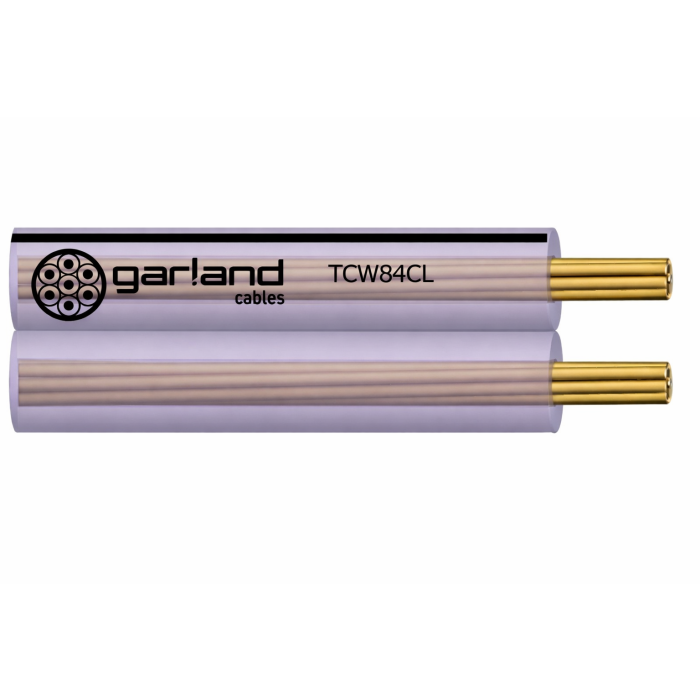

TCW84CL100 TCW84CL Figure 8 Cable Clear - 100m
The TCW84CL100 is a Garland TCW84CL figure 8 cable supplied as a 100 m plastic reel. It uses stranded 13 AWG PACW conductors, 84/0.2 mm construction, two cores and PVC insulation with a nominal 4.5 mm x 9.0 mm OD.
It is intended for wiring electronic and allied equipment, extension speakers and security systems where a heavier figure 8 cable is required. Mechanical data includes a 369 N recommended pulling tension, 45 mm minimum installation bend radius and -15 deg C to 70 deg C operating temperature range.
Key Features
- 13 AWG stranded PACW construction supports heavier figure 8 wiring needs
- 100 m plastic reel format is practical for site installation and dispensing
- PVC insulated two-core construction gives installers a clearly defined cable build
- Pulling tension and bend radius support safer route planning
- Clear/transparent cable presentation assists visual distinction from coloured variants
- Cable Type:
- Fig8
- Product Type:
- Cable
