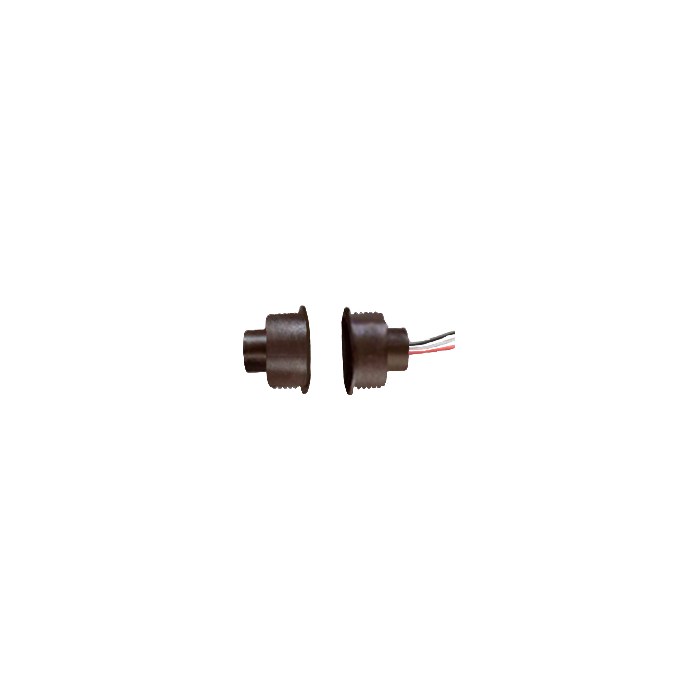

TANSD-82C-BR TANE SD-82C Recessed Reed Contact SPDT - Brown 28 mm Gap
The TANSD-82C-BR is the brown SD-82C recessed reed contact for hardwired door position detection. It uses an SPDT reed form with a 28 mm standard gap, providing a concealed contact option for recessed security installations where a neat fitted appearance is required.
Designed around a 25 mm recessed mounting format with a 30.4 mm face diameter and 21.3 mm height, this contact suits door and frame applications that need reliable changeover signalling in a compact housing. Standard 305 mm 22 AWG leads support straightforward wiring, while the recessed design helps keep the contact protected and visually discreet once installed.
Key Features
- Supports concealed door monitoring with a recessed contact and matching magnet format
- Provides changeover signalling through an SPDT reed arrangement
- Offers a practical 28 mm standard gap for aligned door and frame installations
- Helps simplify hardwired connection with standard 305 mm 22 AWG leads
- Blends neatly with darker finishes thanks to the brown contact colour
- Catalogue Family:
- ALARM SENSOR
- Colour:
- Brown
- Device Type:
- REED SWITCH
- Display:
- NONE
- Hole Cutout:
- 25 MM
- Mounting:
- Recessed Mount
- Output:
- 1 OUTPUT
- Wiring:
- Hardwired
- Alarm Component Type:
- Reed Switches
- Product Type:
- Alarm Sensor
