MET-200AR-36 Surface Mount Armoured Reed Contact - 36 in Cable

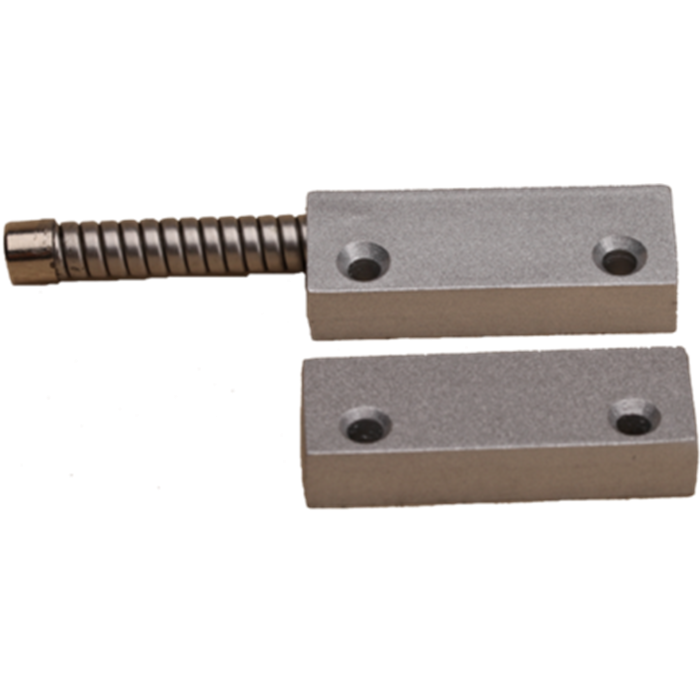

The MET-200AR-36 is a surface mount armoured magnetic reed contact from the Tane MET-200 series with a 36 in (915 mm) armoured cable. It features an aluminium case with a matching surface mount magnet and a standard 1.25 in (32 mm) operating gap.
The contact has a normally open configuration and is suitable for commercial door, window, and overhead door applications. It provides closed-loop operation and is RoHS compliant and cULus listed.
Key Features
- Surface mount magnetic reed contact with a 36 in armoured cable.
- Standard 1.25 in (32 mm) operating gap.
- Aluminium case with matching surface mount magnet.
- Normally open contact with closed-loop operation.
- RoHS compliant and cULus listed.
- Catalogue Family:
- ALARM SENSOR
- Model:
- MET-200AR-36
- Product Type:
- Alarm Sensor
- Contact Size:
- 2 in x 0.74 in x 0.37 in (51 mm x 18.8 mm x 9.5 mm)
- Magnet Size:
- 2 in x 0.74 in x 0.37 in (51 mm x 18.8 mm x 9.5 mm)
- Standard Gap:
- 1.25 in (32 mm)
- Case Colour/Material:
- Aluminium case
- Cable:
- 36 in (915 mm) armour cable available for MET-200AR 36 in
- Loop Status:
- Closed
- Reed Form:
- Normally open
- Max. Contact Rating:
- 10 W
- Max. Switching Voltage:
- AC 110 V / DC 100 V
- Max. Switching Current:
- 0.5 A
- Operating Temperature:
- -40 degrees C to +60 degrees C
- Compliance:
- RoHS marking and cULus listed mark
