SC03-CO-TOP Secor Siren Cover Kit with Combo Siren Horn

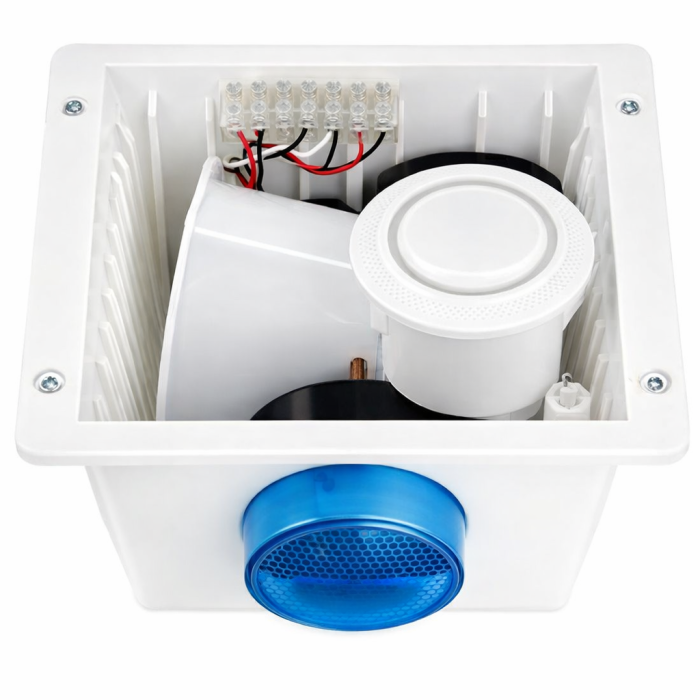

The SC03/CO/TOP is a Secor siren cover kit with a combo siren/horn, blue LED strobe, top hat piezo and reed tamper switch. It includes a UV-treated plastic cover, prewired terminal block and 200 mm x 155 mm x 110 mm cover dimensions.
This kit is suited to alarm installations requiring an external siren cover assembly with audible and visual signalling components. Help installers specify the load and signalling behaviour before fitting.
Key Features
- Prewired terminal block helps simplify alarm siren connection work
- UV-treated plastic cover supports use in exposed alarm cover locations
- Included reed tamper switch supports supervised cover installation design
- Combined audible and blue strobe signalling helps make alarms more visible on site
- Enclosure dimensions assist mounting and clearance planning
- Catalogue Family:
- SCREAMERS & STROBES
- Product Type:
- Screamers & Strobes
- Cover Dimensions:
- 200 mm x 155 mm x 110 mm
- Cover Material:
- UV-treated plastic
- Tamper Switch:
- Reed tamper switch included
- Combo Siren/Horn Voltage:
- 12 VDC
- Combo Siren/Horn Current:
- 450 mA max
- Combo Siren/Horn SPL:
- 110 dB/m
- Horn Speaker:
- 8 ohm; 15 W
- Strobe:
- Blue LED 12 V strobe, 50 mA at 12 VDC
- Top Hat Piezo:
- 12 V, 90 mA at 12 VDC, 105 dB/m
