SBS Ditec SPRINT Sliding Arm - Inward Opening Doors

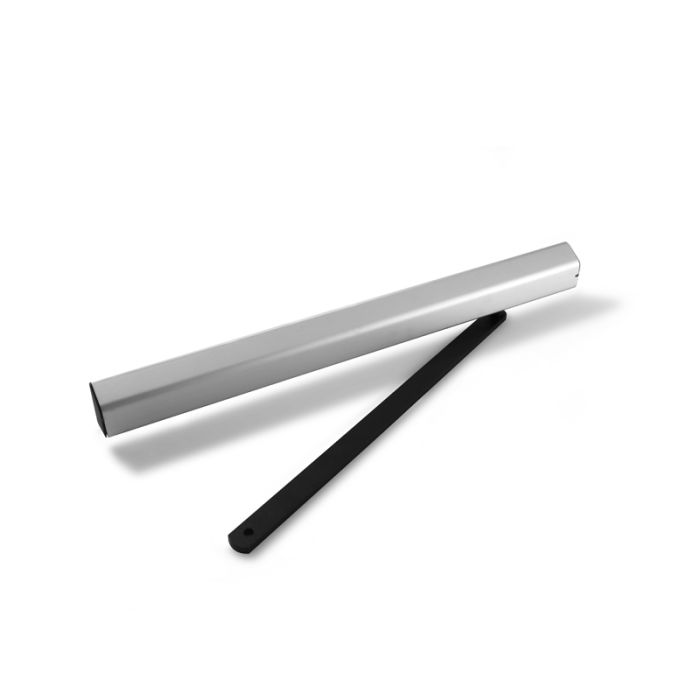

The SBS is the sliding movement arm for the Ditec SPRINT swing-door automation system. It is an anodised EURAS C0 sliding arm for pull door wings and is used for doors that open inwards as seen from the automation side.
This arm suits SPRINT installations where the door arrangement calls for a pull-arm configuration rather than an articulated push arm. The supported door-wing width and opening-angle details help installers check whether the inward-opening arrangement matches the SPRINT setup.
Key Features
- Sliding pull-arm format supports inward-opening swing-door installations
- The SBS arm uses anodised EURAS C0 material
- Dedicated SPRINT arm selection helps match the operator to the door movement
- Door-wing width range supports practical installation planning
- Arm geometry is aligned with the SPRINT operator rather than a generic conversion part
- Catalogue Family:
- LOCKING
- System:
- Ditec SPRINT swing-door automation
- Arm Type:
- Sliding movement arm
- Application:
- Inward-opening doors as seen from the automation side
- Door Action:
- Pull door wings
- Material:
- Anodised EURAS C0 material
- Door Wing Width:
- 650 - 1200 mm
- Door Wing Opening Angle:
- 110 degrees with pull arm
- Product Type:
- Locking
