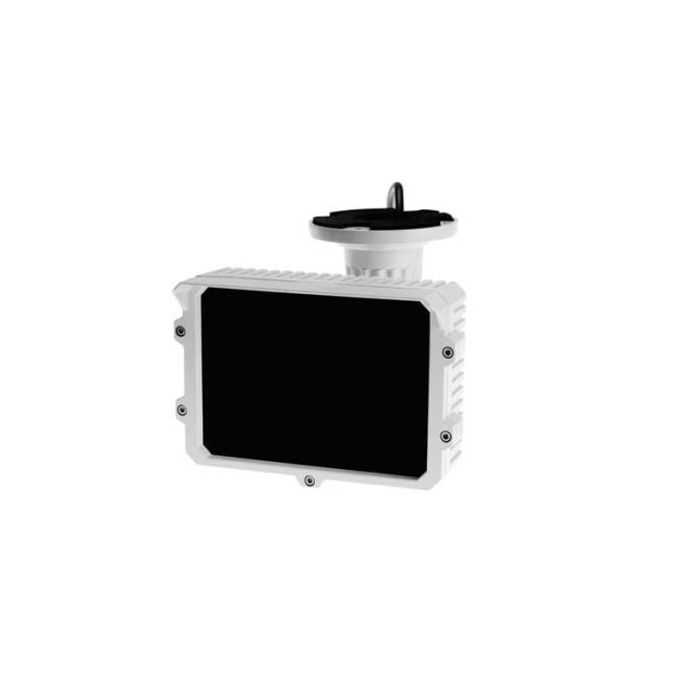

S9143A IR Illuminator - 12VDC 80 m
S9143A is an infrared illuminator with 8 SMD 5050/42u LEDs, a 12VDC ± 10% input, an 80 m IR view distance and a 60 degrees illumination angle.
Key Features
- Infrared illuminator
- 8 SMD 5050/42u LEDs
- 12VDC +/- 10% input
- 80 m IR view distance
- 60 degrees illumination angle
- Automatic low-light operation
- Catalogue Family:
- ACCESSORIES
- Product Type:
- Accessories
- LED Quantity:
- 8 pcs
- LED Size:
- SMD 5050/42u
- Power:
- 12VDC +/- 10% / 1500 mA
- IR View Distance:
- 80 m
- Angle:
- 60 degrees
- Dimensions:
- 150(H) x 120(L) x 88(W) mm
- Weight:
- 860 g
- Storage Temperature:
- -30 deg C to +60 deg C
- Operating Temperature:
- -10 deg C to +50 deg C
