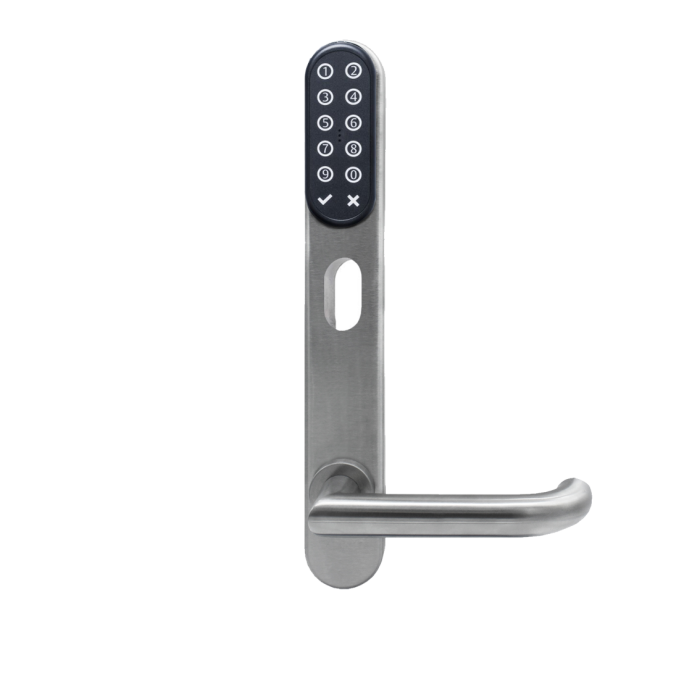

S4ZB42SL1S008RI SMARTair i-max R4N Wireless Escutcheon - Black
The S4ZB42SL1S008RI is a SMARTair i-max R4N wireless escutcheon in black with Openow and MIFARE support. It is designed with the reader module on the external escutcheon and the control and battery module on the internal escutcheon.
It is intended for access-controlled doors using compatible euro profile mortise lock arrangements, with no door cabling required and support for card, PIN and mobile access where licensed.
Key Features
- Wireless escutcheon platform supports access control without door cabling in suitable mortise lock installations.
- Reader and control modules are separated between the external and internal escutcheons for controlled door operation.
- Openow and remote SMARTair app capability can be used where the required software functionality is active.
- Multi-authentication support helps sites choose card, PIN or combined credential workflows where keypad models apply.
- Part of the SMARTair i-max wireless escutcheon platform for electronic access control applications.
- Catalogue Family:
- LOCKING
- Platform:
- SMARTair i-max
- Management Modes:
- Pro Wireless Online and Openow
- Door Profiles:
- Wooden, narrow or glass doors
- Traffic Volume:
- Medium to high
- Installation:
- Drilling with no cabling
- Door Thickness Range:
- 30 mm up to 120 mm
- Power Supply:
- 3 LR03 AAA 1.5 V alkaline batteries
- RFID Technologies:
- HID iCLASS, MIFARE Classic and Ultralight, SKIDATA, DESFire
- Compatible Mobile Solutions:
- Openow and TESA SMARTair remote opening app
- Product Type:
- Locking
