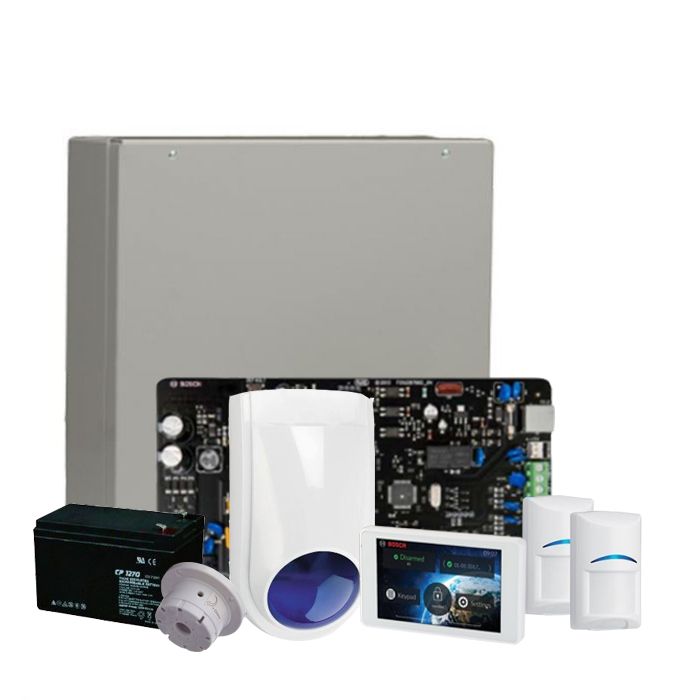

S2K-TS5-PIR-2 Bosch Solution 2000 Kit with 5 Inch Touchscreen Keypad and 2 PIR Detectors
The S2K-TS5-PIR-2 is a Bosch Solution 2000 alarm kit featuring an IUI-SOL-TS5 5-inch touchscreen keypad and two Blue Line Gen2 PIR detectors. The Solution 2000 platform supports up to eight fully programmable zones, four keypads, 32 user codes, and two separately configurable alarm areas.
The system supports STAY and AWAY arming, a 256-event history log, onboard PSTN reporting, and optional IP or mobile communication modules. The PIR detectors provide wired motion detection for designated alarm zones, while the touchscreen keypad provides system control and status display.
Key Features
- 8 zone Solution 2000 platform supports small-site intrusion alarm layouts.
- Two-area operation helps separate spaces such as home, garage, office or shop areas.
- 5 inch touchscreen keypad provides an intuitive interface for everyday system operation.
- Communications module options support reporting and remote-control functionality where configured.
- Supports installer setup, user code management and wireless device enrolment.
- Catalogue Family:
- ALARM SENSOR
- Panel Family:
- Solution 2000
- Maximum Inputs:
- 8
- Maximum Outputs:
- 20
- Users:
- 32 user codes plus 1 installer code
- Maximum Keypads:
- 4
- Areas:
- 2
- Event Log:
- 256 events
- Pstn:
- Onboard
- IP Rating:
- Module
- 3G GPRS:
- Module
- Included Interface:
- 5 Inch Touchscreen Keypad
- Product Type:
- Alarm Sensor
