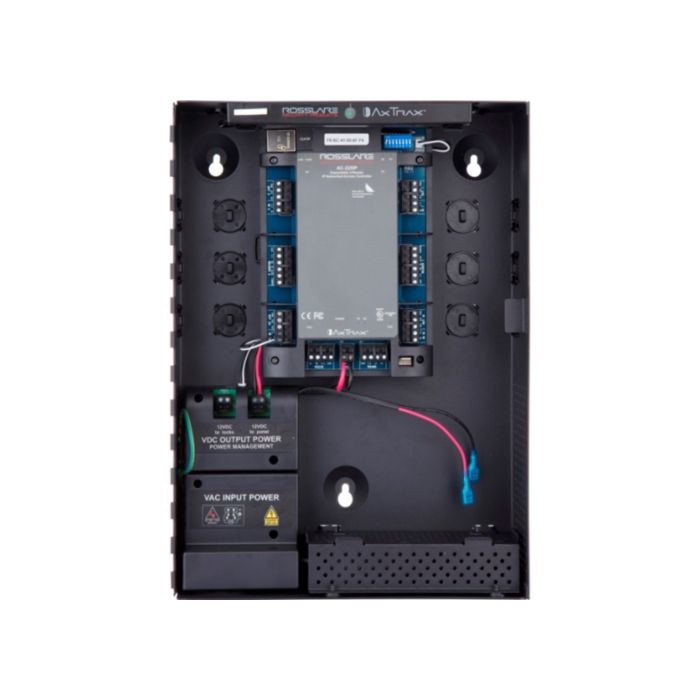

ROSAC-225IP-BA Rosslare AC-225IP-B 2 Reader Networked Access Controller
ROSAC-225IP-BA is a Rosslare AC-225IP-B expandable 2-reader networked access controller for AxTraxNG server software. It provides TCP/IP networking for the AC-225IP version, two reader ports, four supervised inputs and four programmable relay outputs.
It is suited to professional access-control systems needing online and offline operation, user capacity, event history and modular expansion with MD-D02B or MD-IO84B modules.
Key Features
- Two-reader controller supports small access-control deployments.
- TCP/IP networked model integrates with AxTraxNG server software.
- Online and offline operation helps maintain logic during connectivity changes.
- Expansion slot supports MD-D02B or MD-IO84B modules for future growth.
- Wiegand and keypad format support helps integrate common reader hardware.
- Catalogue Family:
- POWER SUPPLY
- Model:
- AC-225IP-B
- Product Type:
- Power Supply
- Power Supply Voltage:
- 12 V DC regulated
- Serial Ports:
- 10/100 Ethernet, RS-485 G-Bus, RS-232
- Inputs:
- 4 supervised high-impedance inputs
- Outputs:
- 4 programmable 5 A NO and NC relay outputs
- Reader Ports:
- 2 x 6-wire ports; 12 V, 300 mA each
- Capacity:
- 30,000 active credentials
- Event Log:
- 20,000 events
- Board Dimensions:
- 193 x 136.5 x 39mm
- Operating Environment:
- Indoor installation only
- Operating Temperature:
- 0°C to 49°C
- Series:
- AC-225IP
