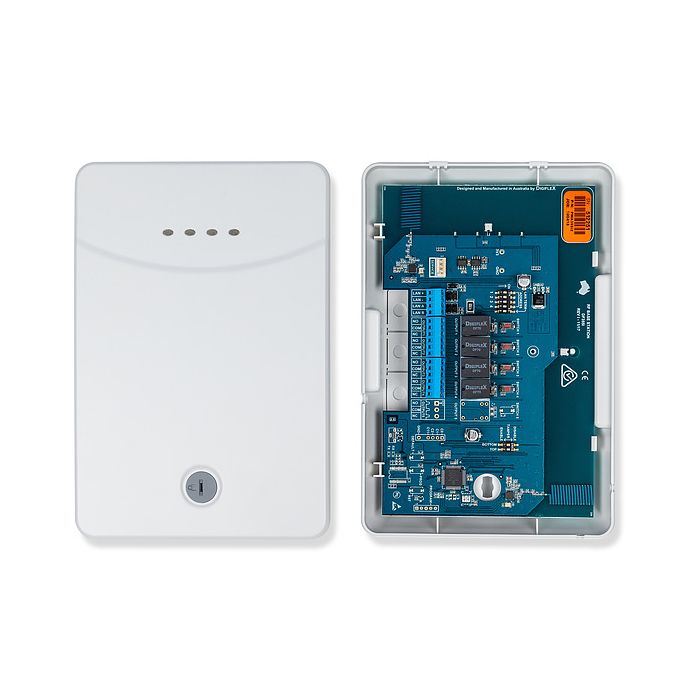

RF120 Smart RF Base Station - RS485
The RF120 is a Smart RF base station receiver that connects to compatible panels over an RS485 LAN. It is an advanced 2-way 433 MHz transceiver with dual diversity internal antennas, front and rear tampers, address selection and LED status indication.
It supports Smart RF deployments where multiple receivers may be installed on a single LAN to extend the area in which RF devices can communicate. The receiver is designed for vertical surface mounting with clearance from metal objects and can be addressed for supported Bosch Solution 6000 and Vision-X panel environments.
Key Features
- RS485 LAN connection supports integration with compatible control panels.
- Two-way encrypted Smart RF communication supports secure device exchange.
- Multiple receiver support helps extend wireless coverage across larger sites.
- Front and rear tamper monitoring supports controlled equipment security.
- LED indicators provide quick local feedback for RF and panel communication status.
- Catalogue Family:
- ALARM / INTRUSION
- Operating Voltage:
- 10 VDC to 14 VDC at 70 mA max; 12 VDC nominal
- Module Connection:
- RS485 LAN
- Frequency:
- 433.42 MHz
- Dimensions:
- 140 mm W x 40 mm D x 270 mm H
- Environment:
- 0 deg C to 49 deg C indoors
- Fixing Method:
- Mounted with screws on a vertical surface in landscape or portrait orientation
- Warranty:
- 3 years return to base from date of manufacture
- Product Type:
- Alarm / Intrusion
