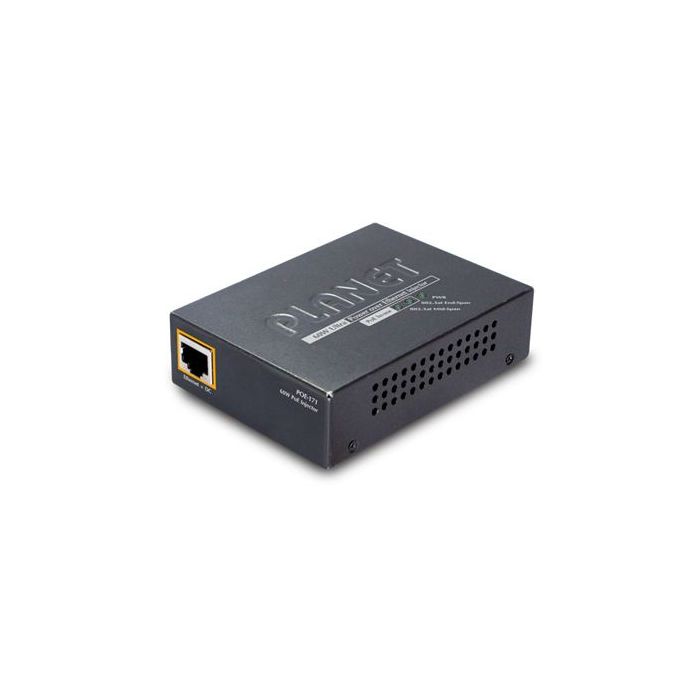

POE-171 PLANET Single-Port Gigabit 60 W Ultra PoE Injector
The POE-171 is a PLANET single-port 10/100/1000Mbps Ultra PoE injector that delivers up to 60 W of power over Ethernet. It supports Gigabit Ethernet data transmission, IEEE 802.3at/af PoE standards, and is housed in a compact metal enclosure.
The injector is designed to provide power and data to compatible PoE devices over a single Ethernet cable, with support for remote power delivery of up to 100 m.
Key Features
- Provides high-power PoE injection for a single Gigabit Ethernet link
- 60 W output supports devices with higher power demand than standard PoE
- End-span and mid-span power assignment supports flexible PoE delivery
- Auto-detection helps protect compliant powered devices during installation
- Compact metal housing supports simple desk or cabinet placement
- Catalogue Family:
- SPLITTERS & EXTENDERS
- Product Type:
- Splitters & Extenders
- Input Port:
- 1 x RJ45 STP data in
- Output Port:
- 1 x RJ45 STP PoE data and power out
- Data Rate:
- 10/100/1000 Mbps
- Unit Input Voltage:
- 56 V DC
- Power Requirements:
- External AC-to-DC adapter, 100 to 240 V AC, 50/60 Hz, 1.5 A
- Power Consumption:
- 65 W max.
- PoE Output:
- 56 V DC / 60 W via 4 pairs; 56 V DC / 30 W via 2 pairs
- Dimensions:
- 95 x 70 x 26 mm
- Weight:
- 237 g
- Operating Temperature:
- 0 to 50 degrees C
