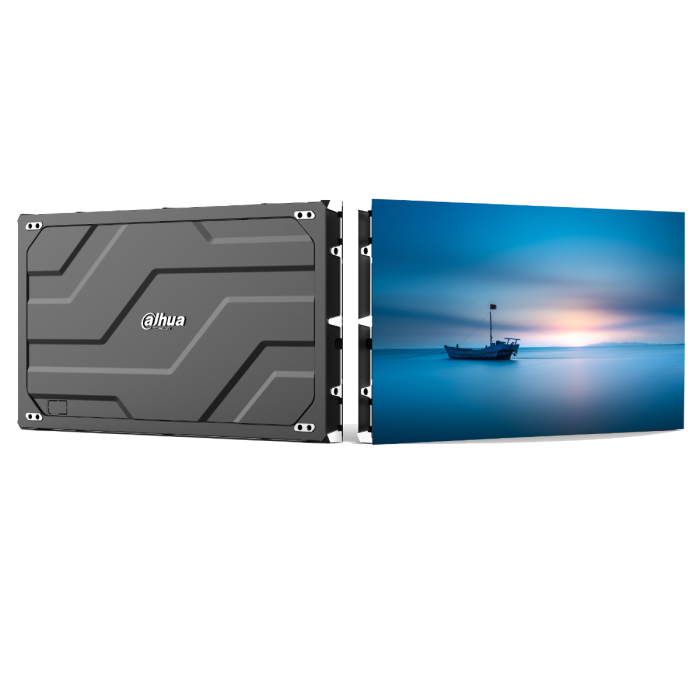

DHI-PHSIA1.2-CN Indoor Fine Pixel Pitch LED Display - 1.25 mm
The DHI-PHSIA1.2-CN is an indoor fine pixel pitch LED display cabinet with Mini Flip COB technology, a 1.25 mm pixel pitch, and a 16:9 aspect ratio. It features 600 nit maximum brightness, a 3840 Hz refresh rate, a 20000:1 contrast ratio, dot-by-dot colour and brightness calibration, wall-mounted or floor-mounted installation, front maintenance, and a die-cast aluminium cabinet.
Key Features
- Fine 1.25 mm pixel pitch supports detailed indoor viewing at closer distances.
- Mini Flip COB technology provides the confirmed LED package platform for the display.
- Front maintenance access helps simplify service work after installation.
- High refresh rate supports smoother visual presentation for moving content.
- 16:9 cabinet format helps scale to common high-resolution display layouts.
- Catalogue Family:
- MONITOR
- Model:
- DHI-PHSIA1.2-CN
- Product Type:
- Monitor
- Pixel Pitch:
- 1.25 mm
- LED Type:
- COB
- Brightness:
- 600 nit maximum
- Pixel Density:
- 640,000 dots/m2
- Cabinet Size:
- 600 mm x 337.5 mm x 39.5 mm
- Cabinet Resolution:
- 480 x 270 dots
- Cabinet Material:
- Die-casting aluminium
- Refresh Rate:
- 3840 Hz
- IP Rating:
- IP50/IP20
- Installation:
- Wall mounted or floor mounted
