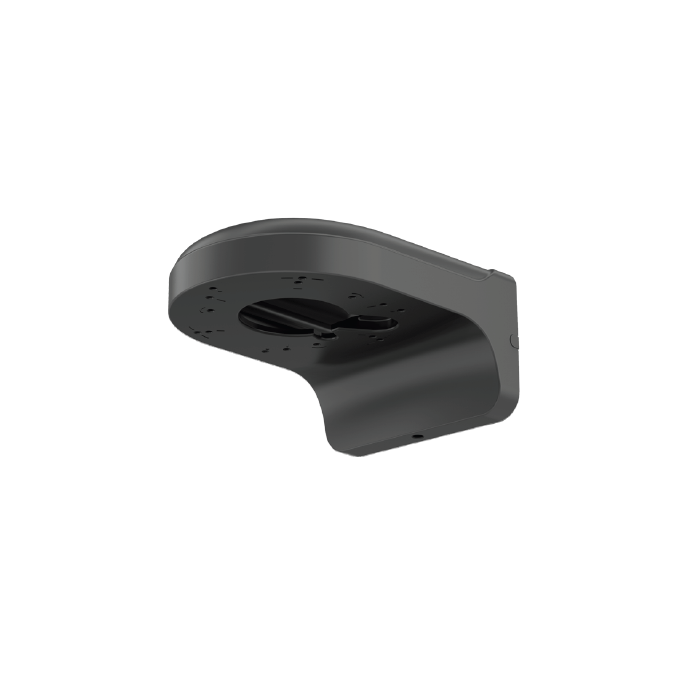

PFB2203W-B Black Wall Mount Bracket
The PFB2203W-B is a Dahua black wall mount bracket for CCTV camera installations. It features SGCC and aluminium alloy construction, dimensions of 162.0 mm x 129.4 mm x 80.0 mm, and a maximum load capacity of 1.0 kg.
The bracket operates in temperatures from -40°C to +60°C and humidity levels below 90% relative humidity. It is compatible with Dahua camera models listed in the Camera Accessories Selection guide.
Key Features
- Wall mount format supports a neat camera mounting outcome
- SGCC and aluminium alloy construction gives the bracket a clearly specified build
- 162.0 mm x 129.4 mm x 80.0 mm size helps installers plan fit and clearance before mounting
- 1.0 kg load rating provides a defined mounting limit for compatible camera setups
- Basic anti-corrosion protection supports standard bracket deployment
- Catalogue Family:
- CAMERA BRACKET
- Model:
- PFB2203W-B
- Product Type:
- Camera Bracket
- Material:
- Aluminium
- Dimensions:
- 162.0 mm x 129.4 mm x 80.0 mm
- Colour:
- Black
- Load Bearing:
- 1.0 kg
- Weight:
- 0.48 kg net
- Installation:
- Wall mount
- Operating Temperature:
- -40 °C to +60 °C
- Humidity:
- 0-90% RH
- Applicable Model:
- Camera Accessories Selection
