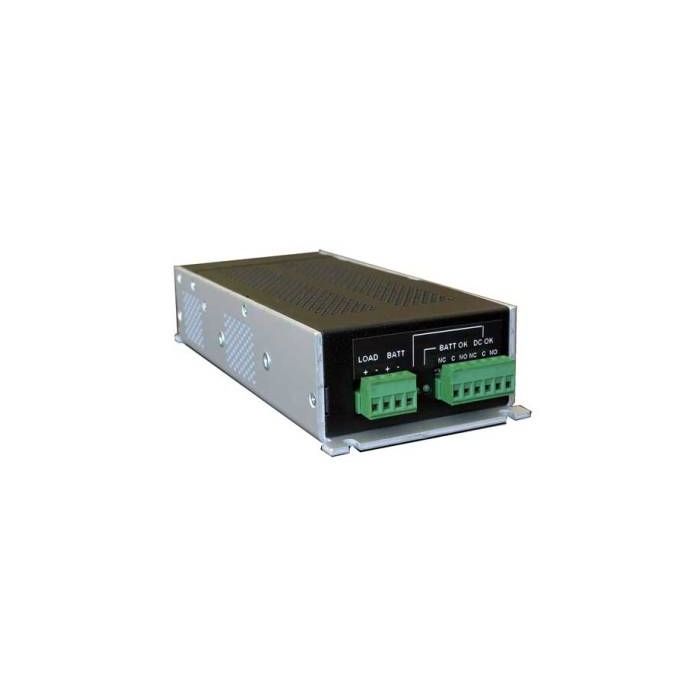

PB256-2405CML Powerbox PB256 27.6 VDC Battery Charger - 4 A Load 1 A Charge
The PB256-2405CML is a Powerbox PB256 Series 138 W battery charger configured for 27.6 VDC output. 4 A total current, 1 A battery current, 138 W output power, battery backup system use, DC UPS connectability, and converter and battery alarm functions.
It is suitable for 24 V battery-backed DC systems that need a compact charger module with monitored output and battery status. The supported low-voltage disconnect, overload protection, and optional coating context make it useful for controlled power cabinets where battery condition and supply health need to be visible.
Key Features
- Supports 24 V-class backup power systems with a confirmed 27.6 VDC float output.
- Alarm outputs help maintenance teams identify converter and battery conditions.
- Independent current limiting assists orderly load and battery charger design.
- Protection functions help minimise nuisance service work after recoverable faults.
- Compact PB256 platform fits security and automation power enclosures.
- Output Voltage Range:
- 27.6 VDC
- Type of Device:
- Power Supply
- Product Type:
- Power Supply
