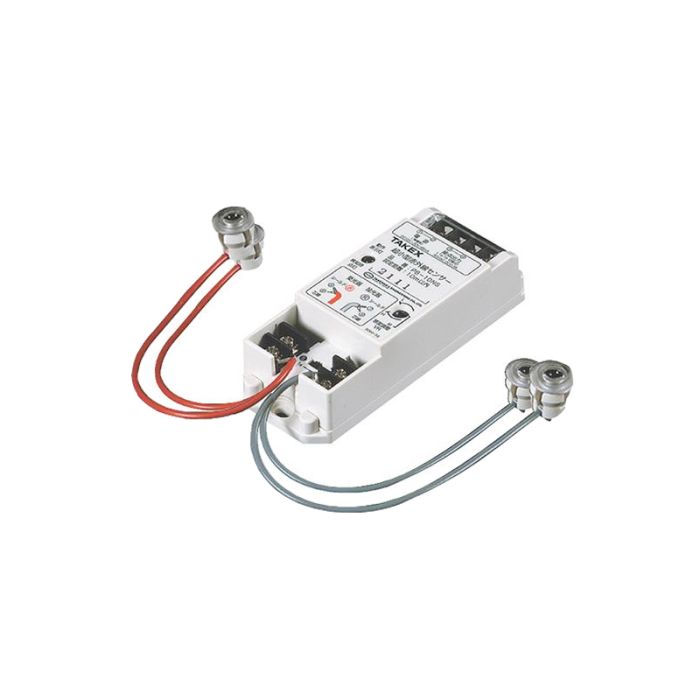

PB-10TNS(E) Twin Beam Miniature Photoelectric Sensor - 10 m
The PB-10TNS(E) is a TAKEX miniature twin-beam photoelectric sensor with near-infrared transmitter/receiver detection over a 10 m protection distance. It is designed for compact installations where a control box and small sensor heads are preferred.
The model suits inconspicuous detection points such as windows, alleys, shutters or equipment openings. Sensor leads can be cut to suit the installation, while sensitivity adjustment and selectable N.O./N.C. relay output support practical commissioning.
Key Features
- Provides twin-beam active infrared detection in a compact sensor-head format.
- Fits tighter installation spaces with a miniaturised control box.
- Allows sensor cords to be cut to the required length for a neater fit.
- Supports sensitivity adjustment to match shorter or longer beam distances.
- Connects to alarm inputs through selectable N.O./N.C. dry-contact output.
- Catalogue Family:
- ALARM SENSOR
- Model:
- PB-10TNS(E)
- Product Type:
- Alarm Sensor
- Detection System:
- Near infrared transmitter/receiver type
- Protection Distance:
- 33 ft (10 m) or less
- Supply Voltage:
- DC 10 V to DC 30 V, non-polarity
- Current Consumption:
- 55 mA or less
- Alarm Output:
- Dry contact relay, 30 V AC/DC 0.3 A; N.O./N.C. selectable
- Response Time:
- Detects 100 ms or more of beam interruption
- Operation LED:
- Red during detection when beam is interrupted
- Ambient Temperature:
- -25 degrees C to +55 degrees C without condensation or freezing
- Control Box Dimensions:
- 45 x 120 x 29 mm
- Appearance:
- Clear PC resin sensor; white ABS resin control box
- Weight:
- Sensor 120 g x 4; control box 95 g
