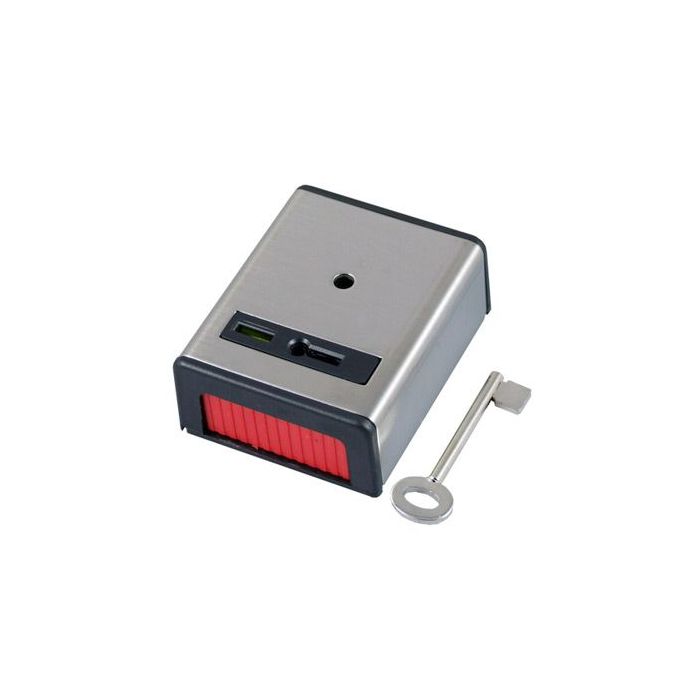

PAB2 Side Push Panic Button with Key
The PAB2 is a side push panic latching button with a resettable key for internal applications. It features SPDT NO/NC contacts, single side push operation, a stainless steel housing, and a status indication window.
Designed for hardwired duress and panic button installations, the unit provides side activation, visible status indication, and key-reset functionality for controlled operation.
Key Features
- Side push operation supports a distinct activation style for panic signalling.
- SPDT NO/NC contacts provide flexible wiring options.
- Status indication window provides clear visual indication of the unit state.
- Resettable key allows controlled restoration after activation.
- Designed for internal-use panic and duress applications.
- Catalogue Family:
- ALARM SWITCH
- Model:
- PAB2
- Product Type:
- ALARM SWITCH
- IP Rating:
- INTERNAL USE ONLY
- Contacts:
- SPDT NO/NC
- Operation:
- SINGLE SIDE PUSH
- Operating Temperature:
- -25 DEG C TO 105 DEG C
- Switch Button Material:
- Copper with nickel cover
- Housing:
- Stainless steel housing with status indication window
- Included Key:
- 1 stainless key
