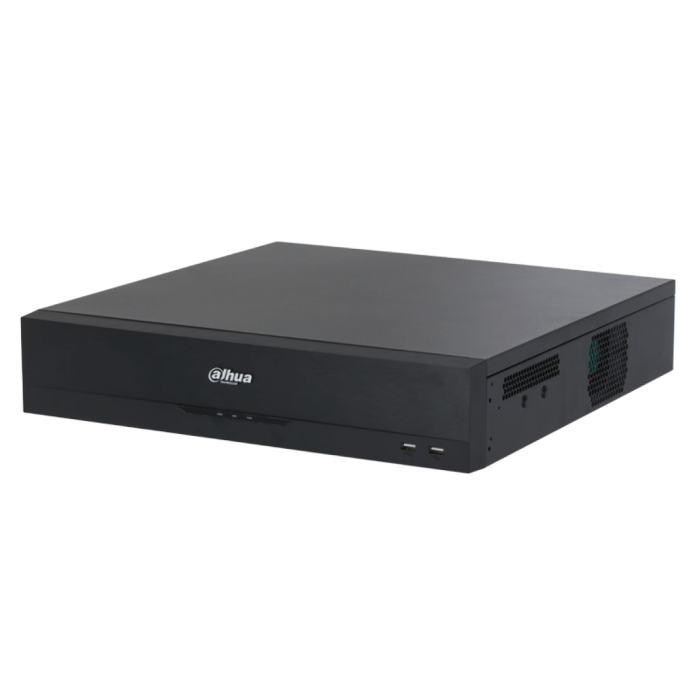

NVR5864-AI/ANZ-PRO Dahua WizMind 64-Channel AI Network Video Recorder
The NVR5864-AI/ANZ-PRO is a 2U Dahua WizMind NVR designed for large-scale IP surveillance and analytics powered by Xinghan Large-Scale AI Models. It accepts camera streams up to 32 MP and supports 8K HDMI output, with maximum bandwidth of 512 Mbps incoming, 512 Mbps recording and 384 Mbps outgoing when AI is disabled. Enabling AI changes incoming, recording and outgoing bandwidth to 200 Mbps each.
Eight SATA bays accept up to 20 TB per disk, subject to environmental temperature, with RAID 0/1/5/6/10, disk groups and eSATA providing adaptable storage configuration. Two Gigabit network ports offer multi-address, load balancing and fault tolerance modes for more resilient connectivity in retail, residential community and public safety surveillance systems.
Key Features
- Natural-language WizSeek search shortens the path from a written description to relevant footage
- Xinghan-enabled perimeter analytics cover 16 channels to improve the focus of event review
- Face recognition compares captured faces against configured databases to support identity-based investigations
- AcuPick back-end intelligence helps isolate targets more precisely from high-volume recordings
- The modular NVR NEXT interface keeps core operating workflows organised and efficient
- Series:
- Wizmind
- HDD Port:
- 8xSATA
- Product Type:
- NVR
- Catalogue Family:
- NVR
- IP Camera Input:
- 64
- Video Output:
- 2 x HDMI, 2 x VGA
