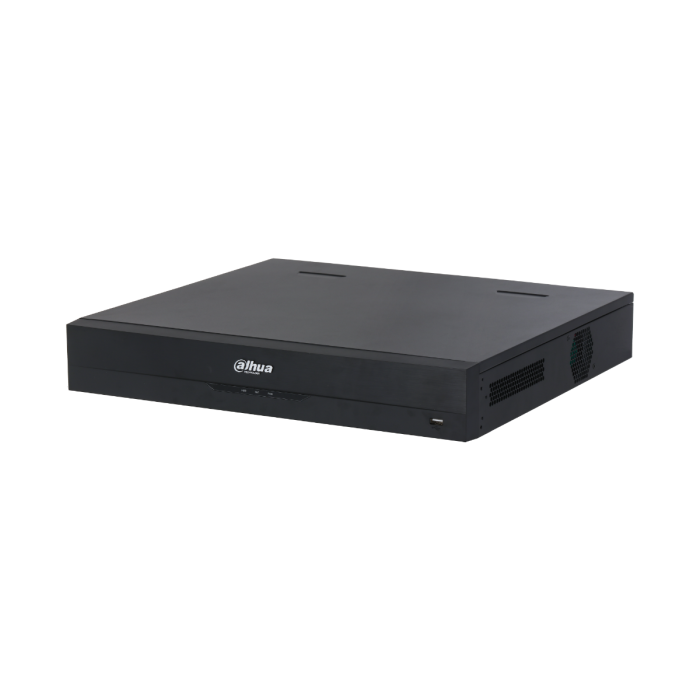

DHI-NVR5432-AI/ANZ-S2 32 Channel 1.5U 4 HDD WizSense Network Video Recorder
The DHI-NVR5432-AI/ANZ-S2 is a 32 channel 1.5U Dahua WizSense network video recorder with 4 SATA HDD bays and dual Gigabit Ethernet ports. It supports IP cameras up to 32 MP, 8K HDMI output, Smart H.265+ and H.265 decoding, N+M cluster support and iSCSI.
This non-PoE NVR suits larger IP surveillance networks where cameras are powered through separate switching infrastructure and centralised recording capacity is required. Recorder-side AI functions support face detection and recognition, metadata, perimeter protection, SMD Plus and AcuPick, with ONVIF support for third-party camera access.
Key Features
- 32-channel recorder capacity fits broader IP camera networks.
- Dual Gigabit network ports support resilient or segmented network designs.
- Four high-capacity drive bays help extend local recording retention.
- WizSense search and detection tools support faster incident review.
- N+M cluster and iSCSI support help suit scalable surveillance architectures.
- Catalogue Family:
- NVR
- Model:
- DHI-NVR5432-AI/ANZ-S2
- Access Channels:
- 32 channels
- Network Bandwidth:
- 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing with AI disabled; 200 Mbps each with AI enabled
- Supported IP Camera Resolution:
- Up to 32 MP
- Decoding Capability:
- Up to 32-channel 1080p at 30 fps
- Video Output:
- 2 x HDMI, 2 x VGA; HDMI up to 7680 x 4320
- Network Ports:
- 2 x 10/100/1000 Mbps Ethernet RJ-45
- Alarm Input/Output:
- 16 alarm inputs, 6 alarm outputs
- Disk Interface:
- 4 SATA ports, each up to 20 TB
- Power Supply:
- 100-240 VAC, 50/60 Hz
- Dimensions:
- 440.0 mm x 415.6 mm x 76.0 mm
- Operating Temperature:
- -10 deg C to +55 deg C
- Product Type:
- NVR
