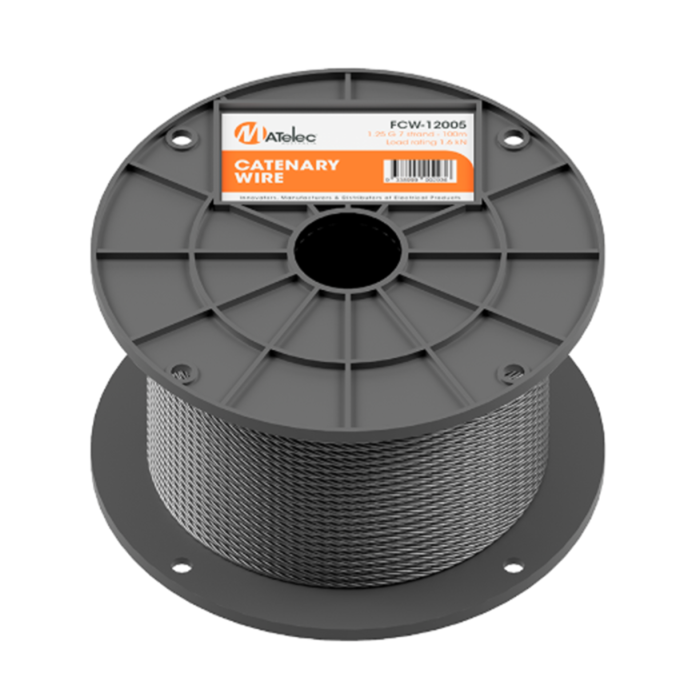

MTLFCW-12005 MATELEC Electro-Galvanised Catenary Wire - 1.25 G 7 Strand 100 m Drum
The MATELEC FCW-12005 is a 1.25 G 7 strand catenary wire supplied on a 100 m drum. Electro-galvanised steel catenary wire with a 4.0 mm outside diameter and a 3.3 kN load rating.
It is suitable for supported cable-suspension and catenary-wire installations and is supplied in a drum format.
Key Features
- 100 m drum length supports longer catenary runs with fewer joins.
- Electro-galvanised steel construction gives a clearly finish for specification.
- 3.3 kN load rating helps match the wire to supported installation requirements.
- 4.0 mm OD wire size makes product selection clear within the FCW range.
- Drum format helps manage longer catenary runs during installation.
- Catalogue Family:
- SOUND & PUBLIC ADDRESS
- Product Type:
- Sound & Public Address
- Construction:
- 1.25 G 7 strand
- Material:
- Metal
- Finish:
- Electro-galvanised
- Load Rating:
- 3.3 kN
- Wire Size:
- 4.0 mm OD
- Drum Length:
- 100 m
- Drum Hole Size:
- 40 mm
- Packing:
- 1
- Carton / Pallet Quantity:
- 150/pallet
