M2000BT Prastel M2000-BT Gate Access Controller

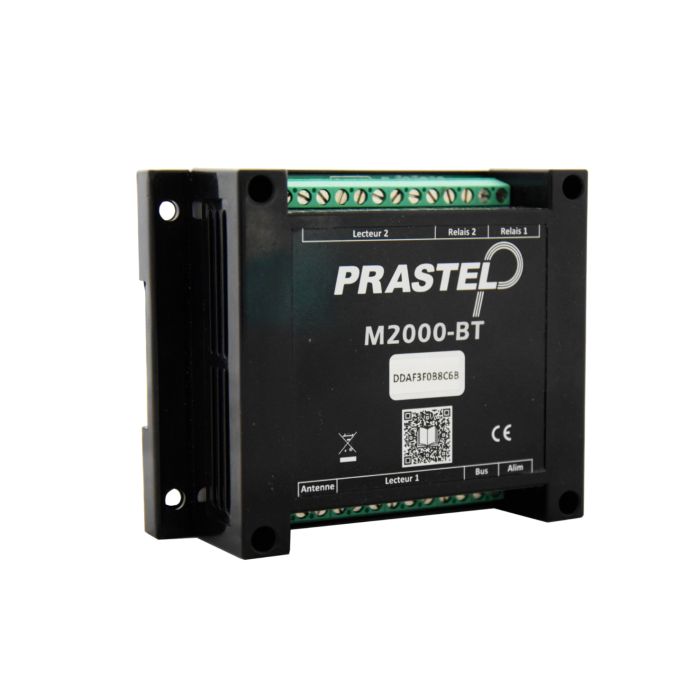

The M2000BT is a Prastel M2000-BT standalone gate access controller managed wirelessly through the M2000-BT smartphone application. The installation instructions confirm 12 VDC power supply, built-in 433 MHz receiver function, 2000 memorisable users, 3000 memorisable events, two Wiegand reader inputs, two relay outputs, four auxiliary inputs, and one RS485 output.
It is suitable for car parks, gates, turnstiles, and commercial access-control points where programming from a smartphone is useful. Reader input support, relay configuration, antipassback, conditional input, and user management functions help the controller serve single- or dual-access workflows without requiring a PC-led commissioning process.
Key Features
- Smartphone-based management simplifies user and relay configuration on site.
- Two reader inputs support entry/exit or dual-point access-control layouts.
- Built-in 433 MHz receiver function supports compatible radio credential use.
- Event memory and user capacity suit larger small-site access-control databases.
- Auxiliary and RS485 outputs provide integration points for more complete gate control setups.
- Catalogue Family:
- POWER SUPPLY
- Power Supply:
- 12 VDC
- Average Consumption:
- <100 mA
- Receiver Frequency:
- 433 MHz
- Users:
- 2000 memorisable
- Events:
- 3000 memorisable
- Reader Inputs:
- 2 x Wiegand 26, 30, 37 bit
- Relay Outputs:
- 2; 1 A at 12 V contact capacity
- Size / Weight:
- 115 x 90 x 40 mm / 200 g
- Product Type:
- Power Supply
