LRP-101U-KIT PLANET Long Reach PoE over UTP Extender Kit

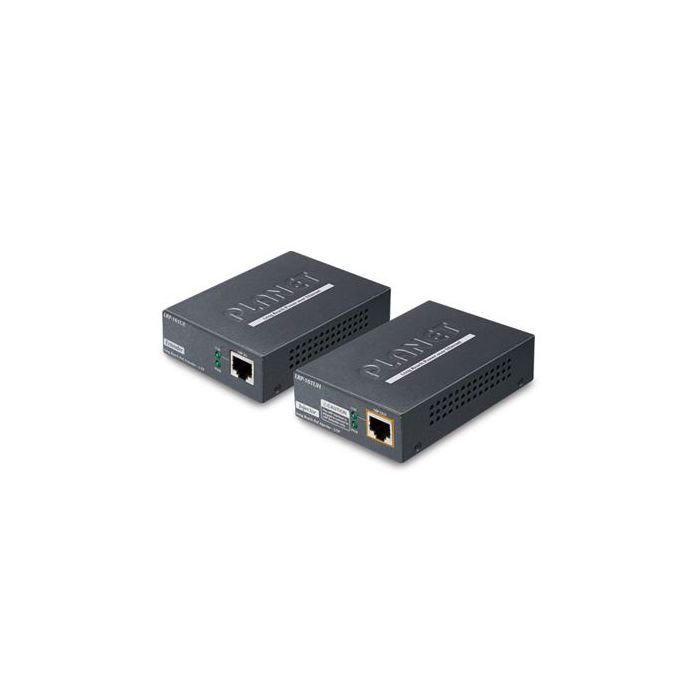

The LRP-101U-KIT is a PLANET Long Reach PoE over UTP extender kit comprising the LRP-101UH injector and LRP-101UE extender. It supports point-to-point data and power transmission of up to 500 m over UTP, plus an additional 100 m Ethernet connection to a remote PoE device.
The extender kit is designed for IP surveillance, wireless access point, and access control applications requiring PoE and Ethernet transmission beyond the standard 100 m Ethernet distance. It features plug-and-play operation, metal housings, and supports DIN rail or wall mounting.
Key Features
- Extends PoE networking beyond the standard Ethernet distance limit
- Injector and extender kit format provides the matched pair required for deployment
- Supports remote PoE devices such as IP cameras wireless APs and access control equipment
- Long UTP reach helps avoid local power requirements at the remote device position
- Compact metal housings with mounting options suit space-limited installations
- Catalogue Family:
- SPLITTERS & EXTENDERS
- Product Type:
- Splitters & Extenders
- Kit Components:
- LRP-101UH injector and LRP-101UE extender
- Long Reach Distance:
- Up to 500 m over UTP
- Remote Ethernet Distance:
- Another 100 m over Ethernet cable to remote PoE device
- PoE Standard:
- IEEE 802.3af/802.3at PoE compliant powered device context
- PoE Output:
- Up to 25 W depending on power source and cable distance
- Operating Temperature:
- -20 to 70 degrees C
- Installation:
- Compact size, DIN rail and wall-mount design
