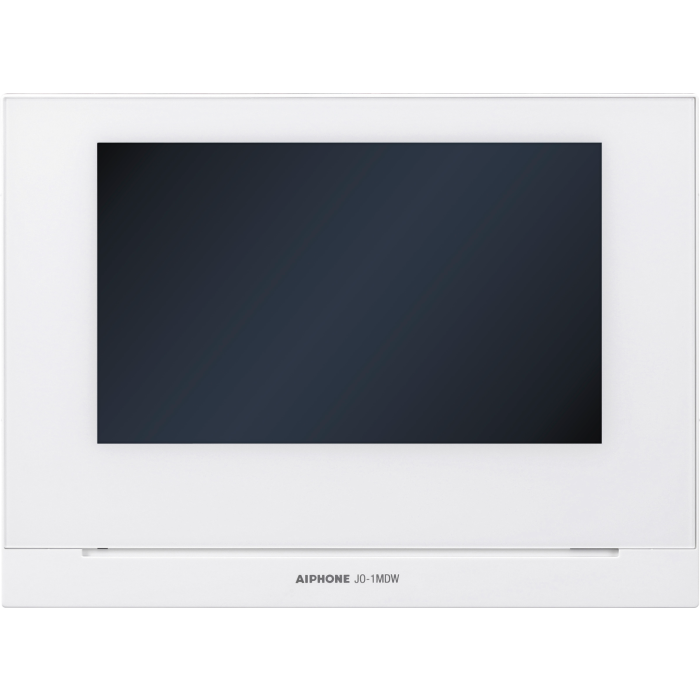

JO-1MDW JO Series App-Compatible Master Station
The JO-1MDW is an Aiphone JO Series video intercom master station with a 7 inch TFT LCD touchscreen and app-compatible operation. It supports up to 8 mobile apps, allowing calls to be answered and door release to be operated from the facility or while away, where the JO system and app setup support that use.
Designed for wall mounting, the white master station supports hands-free auto-voice actuation or touch-to-talk communication, plus recording to internal memory or to a microSDHC card. Its 2.4 GHz IEEE 802.11 b/g/n wireless interface and built-in call recording make it suited to JO Series installations where touchscreen control and mobile access are required.
Key Features
- Combines indoor touchscreen control with mobile app access for more flexible visitor answering.
- Supports recorded call review from the master station or registered mobile app.
- Gives installers a JO Series master option with Wi-Fi and app-capable functionality.
- Provides familiar wall-mounted operation with hands-free or touch-to-talk communication modes.
- Allows memory expansion via microSDHC card for larger call-recording capacity.
- Catalogue Family:
- INTERCOM
- Model:
- JO-1MDW
- Product Type:
- Intercom
- Screen:
- 7 inch TFT LCD touchscreen
- App Capacity:
- Up to 8 mobile apps
- Power Source:
- 18 V DC from PS-1820UL power supply
- Current Consumption:
- 450 mA maximum
- Wireless Protocol:
- 2.4 GHz IEEE 802.11 b/g/n
- Door Release Contacts:
- N/O 24 V AC/DC, 1 A
- Communication:
- Auto-voice actuation; touch-to-talk
- Recording Capacity:
- Internal memory up to 10 calls; external memory up to 1,000 calls
- External Memory:
- MicroSDHC card, 4 GB to 32 GB FAT32, not included
- Mounting:
- Wall Mount
- Material:
- Plastic
- Colour:
- White
- Ambient Temperature:
- 0 to +40 deg C
- Dimensions:
- 155 mm H x 210 mm W x 27 mm D
- Weight:
- Approx. 620 g
