IX-PR/2 Aiphone IX Series PoE Cell Intercom - Flush Mount Stainless Steel

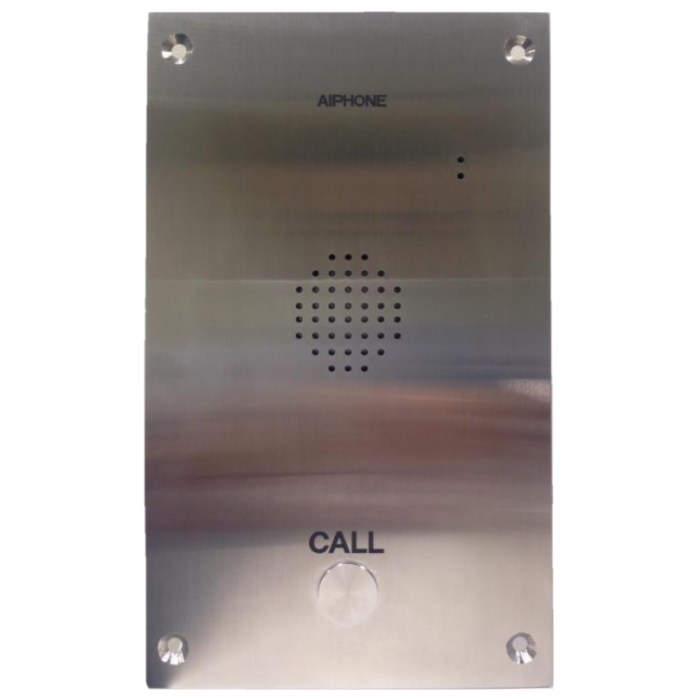

The IX-PR/2 is an Aiphone IX Series PoE cell intercom designed as a flush wall-mounted IP intercom station. It combines Power-over-Ethernet operation, hands-free automatic voice switching, Ethernet LAN connectivity and support for calling up to 20 stations.
It suits high-use entry points where a stainless-steel intercom faceplate, IP networking and supervised call initiation are required in one device. The 316 stainless steel front panel, piezo button and tamper-switch function make it appropriate for robust commercial access communication.
Key Features
- PoE operation supports networked intercom deployment without a separate local supply.
- Hands-free automatic voice switching helps visitors communicate without a handset.
- 10BASE-T and 100BASE-TX LAN support fits standard IX network infrastructure.
- Stainless steel front panel and piezo button suit demanding entry environments.
- Tamper switch can trigger a high-priority call when the lever is activated.
- Catalogue Family:
- INTERCOM
- Model:
- IX-PR/2
- Power Source:
- Power-over-Ethernet, IEEE 802.3af Class 0
- Current Consumption:
- Standby 33 mA, maximum 70 mA
- Communication:
- Hands-free automatic voice switching
- LAN:
- Ethernet 10BASE-T / 100BASE-TX
- Number of Called Stations:
- 20 stations
- Ambient Temperature:
- -40 to +60 deg C
- Mounting:
- Flush wall-mount, 3-gang electrical box
- Material:
- Stainless Steel
- Product Type:
- Intercom
