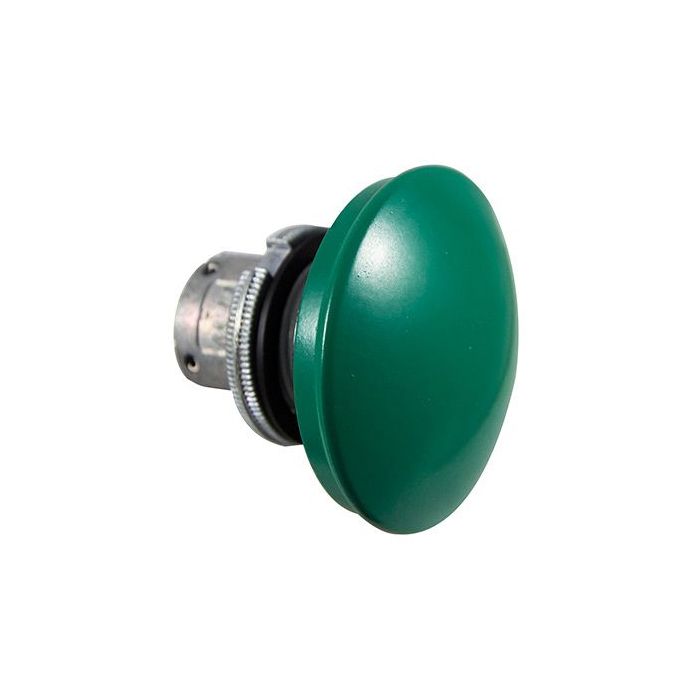

ITWMUSHROOMGR High Impact IP67 Mushroom Button - Green
The ITWMUSHROOMGR is a green mushroom push button from the ITW 76-94 panel-sealed range for 22mm panel applications. It features IP67 front panel sealing, a zinc alloy body and actuator, Series 16 snap-action switch compatibility, and a standard 22.5mm panel mounting hole.
The high-impact design is suitable for exit, control and access-panel applications requiring a sealed mechanical actuator. It supports panel mounting in material up to 6mm thick and provides a wide operating temperature range.
Key Features
- High-impact mushroom push button for demanding control applications.
- IP67 panel-sealed construction for protected operation.
- Zinc alloy body and actuator for durable performance.
- Standard 22.5mm panel mounting hole for straightforward installation.
- Compatible with Series 16 snap-action switches and panel materials up to 6mm thick.
- Button Color:
- Green
- Product Type:
- Alarm Switch
