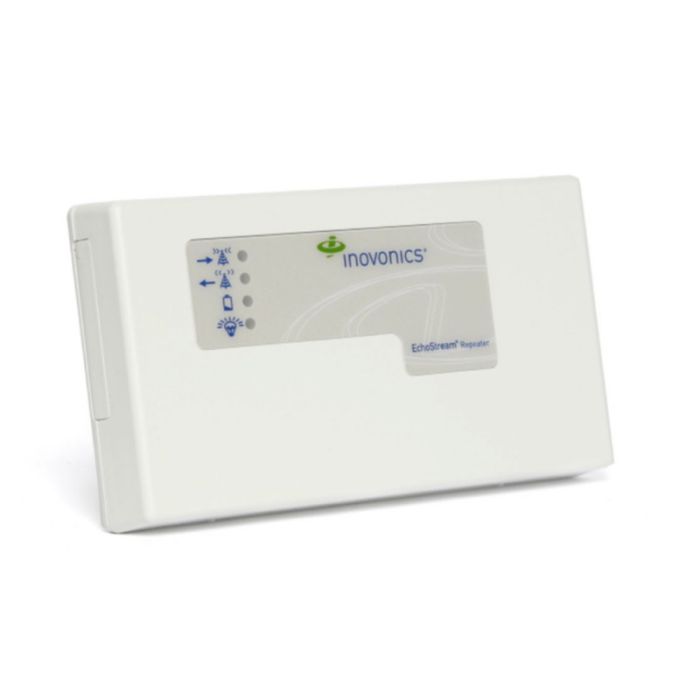

EN5040 High Power Repeater
The EN5040 is an Inovonics high power repeater used to amplify EchoStream transmitter signals while ignoring background noise. It provides signal management, backup battery support and self-configuring operation for extending wireless system coverage.
It is suited to larger facilities such as multi-floor buildings, multi-building sites, shopping malls, campuses and open-air installations where wireless endpoint coverage needs to be scaled. Multiple repeaters can be used to expand system size where the site design requires broader EchoStream coverage.
Key Features
- Amplifies EchoStream transmissions to support larger wireless security layouts
- Signal management helps the repeater focus on relevant transmitter traffic
- Backup battery support helps maintain operation during line power loss conditions
- Self-configuring operation reduces programming effort during installation
- Scalable repeater use supports broader coverage across larger sites
- Catalogue Family:
- BATTERY
- Market:
- North America, Australia and New Zealand
- Echostream Frequency:
- 902-928 MHz frequency hopping spread spectrum
- Dimensions:
- 6.5 x 3.6 x 1.1 in (165 x 91 x 28 mm)
- Weight:
- 7.14 oz (202 g)
- Power Requirement:
- 14 VAC, 60 Hz, 250 mA
- Battery Capacity:
- 3.6 V, 3250 mAh
- Typical Backup Battery Life:
- 24 hours
- Operating Temperature:
- UL installations: 32 to 140 F (0 to 60 C); other installations: -4 to 140 F (-20 to 60 C)
- Environment:
- Up to 90% non-condensing
- Check-In Time:
- 3 minutes
- Regulatory Compliance:
- Security Level 1 CAN/ULC S304:2016, UL 985, UL 1023 and UL 2610
- Product Type:
- Battery
