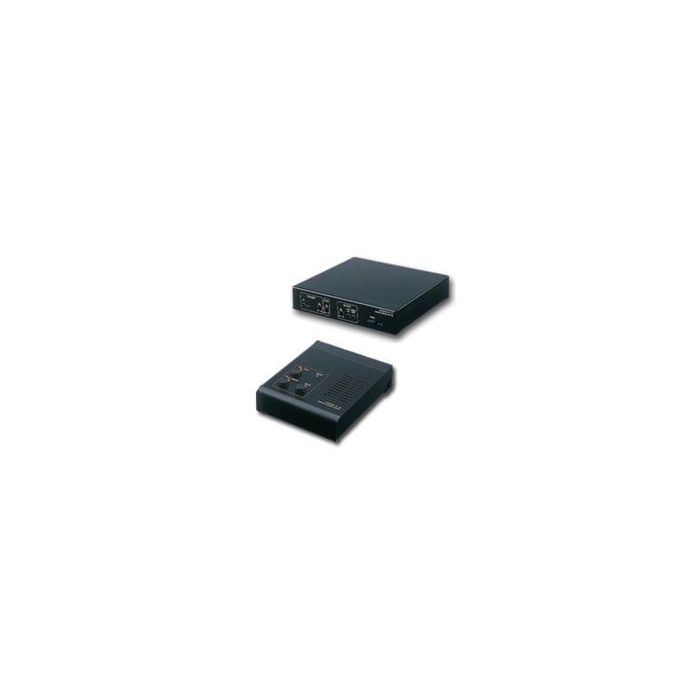

IMU100 Aiphone IMU-100 Security Window Intercom Main Kit
The IMU100 is an Aiphone IMU-100 security window intercom main kit for communication across barrier glass. The main kit includes the MU-100 main unit and OU-100 operation unit for ticket booths, stations, stadiums, theme parks, banks and consulates.
The system uses voice-actuated communication and supports the acoustic tube approach used in the wider booth intercom setup. It is suited to service windows where staff and customers need clear conversation while remaining separated by high-security glass.
Key Features
- Main kit provides the core MU-100 and OU-100 booth intercom units
- Voice-actuated communication supports hands-free service-window conversations
- Designed for barrier-glass environments where direct openings are undesirable
- Supports integration with the acoustic tube components in the same system
- Suitable for service counters and ticket-window style communication points
- Catalogue Family:
- INTERCOM
- Model:
- IMU-100
- Power Source:
- DC 24V
- Current Consumption:
- 120 mA standby; 780 mA maximum
- Operating Temperature:
- 0 deg C to 40 deg C
- Communication:
- Voice-actuated communication
- Transmit Output:
- 3 W at 4 ohm
- Receive Output:
- 1.5 W at 16 ohm
- Material:
- Metal
- Main Unit Dimensions:
- 210 W x 45 H x 206 D mm
- Operation Unit Dimensions:
- 130 W x 49 H x 160 D mm
- Main Unit Weight:
- Approx. 1.3 kg
- Operation Unit Weight:
- Approx. 700 g
- Product Type:
- Intercom
