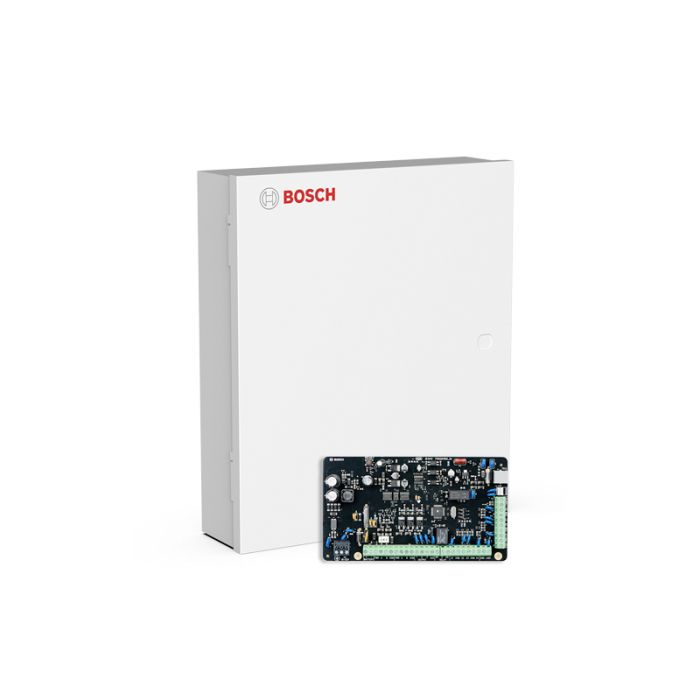

ICP-SOL3-PE Solution 3000 Control Panel with Enclosure - 16 Zone
The ICP-SOL3-PE is the Bosch Solution 3000 control panel supplied with enclosure for residential and small commercial intrusion alarm systems. The Solution 3000 platform supports up to 16 fully programmable zones, 33 codes, STAY/AWAY arming and two separate areas.
It provides a flexible panel base for sites that need broader input capacity than Solution 2000, with keypad choices, communication module options and wireless expansion support. The Solution 3000 platform supports the WE800EV2 receiver and optional integration with the Bosch RADION wireless range.
Key Features
- 16 programmable zones provide greater input capacity for larger alarm layouts.
- Two-area partitioning can help manage separate spaces from one panel.
- Wireless expansion support gives installers more options for detector placement.
- Multiple keypad styles let the user interface suit the installation.
- Reporting and app-control options are available with compatible communications modules.
- Catalogue Family:
- ALARM SENSOR
- Panel Model:
- Solution 3000
- Programmable Zones:
- Up to 16
- Codes:
- 33 codes: 1 installer and 32 user codes
- Wireless Support:
- WE800EV2 and optional Bosch RADION integration
- Power:
- TF008 plug pack primary power; 12 VDC 6.5 Ah sealed lead acid battery secondary power
- Communications:
- CID, SIA, Email, Domestic Dialling, CSV-IP and Push Notification with required modules
- Keypads:
- Up to 4 keypads
- Areas:
- 2 separate areas
- Operating Temperature:
- 0 deg C to 45 deg C
- Relative Humidity:
- 10% to 95% non-condensing
- Enclosure Dimensions:
- 306 mm x 262 mm x 84 mm packed in carton
- Weight:
- 2.5 kg
- Product Type:
- Alarm Sensor
