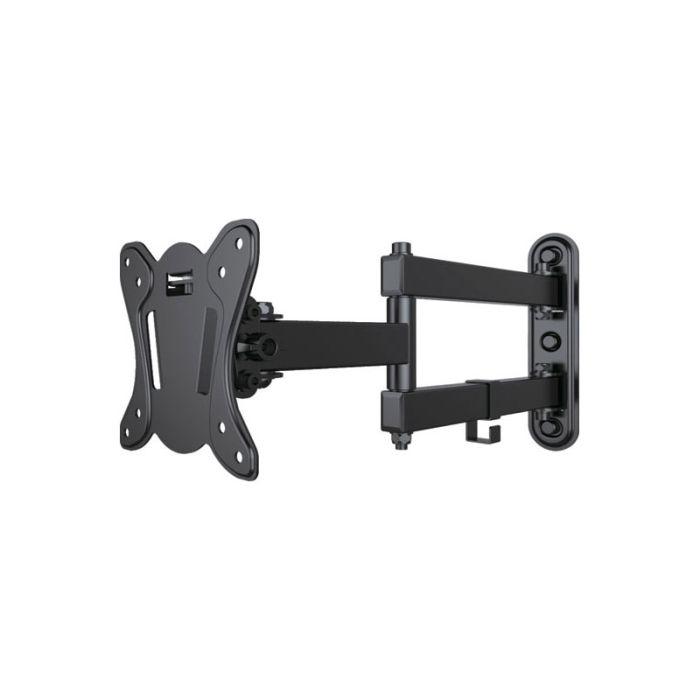

H8181B Flat Screen Articulated Wall Bracket - Black 13 to 27 Inch
The H8181B is a black articulated wall bracket for flat screens from 13 to 27 inches. It supports VESA MIS-D 75 and 100 mounting patterns, has a maximum load capacity of 25 kg, and provides an adjustable wall projection from 65 mm to 408 mm.
Suitable for hospitality, information display, and commercial installations, the articulated design offers flexible screen positioning with 180° pan and a tilt range of -12° to +3° for improved viewing angles.
Key Features
- Articulated wall bracket for 13 to 27 inch flat screens.
- Supports VESA MIS-D 75 and 100 mounting patterns.
- 25 kg maximum load capacity.
- 180° pan and -12° to +3° tilt for flexible viewing adjustment.
- Adjustable projection from 65 mm to 408 mm from the wall.
- Catalogue Family:
- MONITOR
- Product Type:
- Monitor
- Colour:
- Black
- Screen Size:
- 13 to 27 inch
- VESA Mounting:
- MIS-D 75 x 75 mm, 100 x 100 mm
- Maximum Load:
- 25 kg
- Pan:
- 180°
- Tilt:
- -12° to +3°
- Wall Projection:
- 65–408 mm
- Dimensions:
- 224 x 122 mm (H x W)
