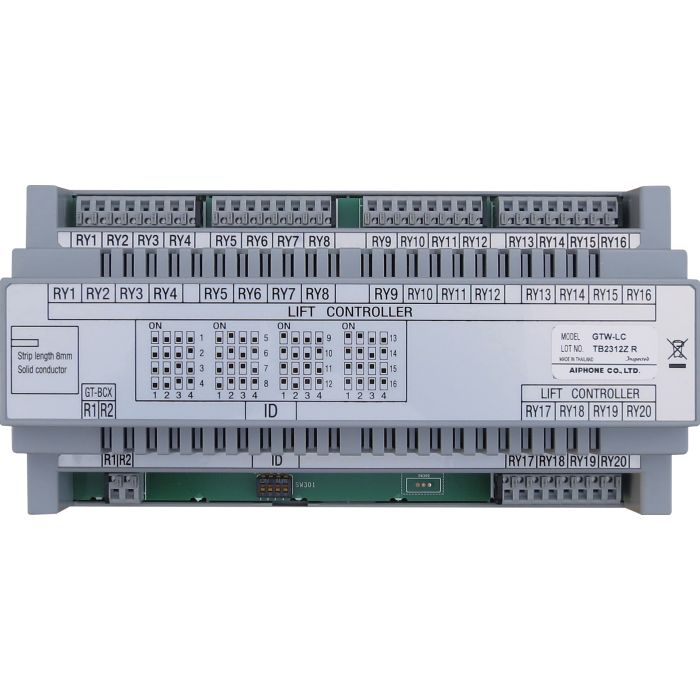

GTWLC Aiphone GT 20 Floor Lift Controller
The GTWLC is a lift control adaptor for Aiphone GT Series multi-tenant intercom systems. It provides 20 relay contacts, 24 V AC/DC 500 mA dry-contact ratings and power supplied by the GT-BC.
It is used where GT entry control needs to interact with lift access control across up to 20 floors or relay outputs. DIN rail mounting and single-pair cabling support installation in riser or control equipment areas.
Key Features
- Links GT intercom operation with lift-control relay functions.
- Provides 20 relay contacts for floor or lift-access control design.
- Dry-contact output ratings are clearly defined for interface planning.
- DIN rail mounting suits structured equipment cabinets and riser locations.
- Power from GT-BC keeps the adaptor tied to the GT system infrastructure.
- Catalogue Family:
- INTERCOM
- Model:
- GTWLC
- Product Type:
- Intercom
- Power Source:
- Supplied by GT-BC
- Relay Contacts:
- 20
- Contact Rating:
- AC/DC 24 V, 500 mA, normally open/normally closed dry closure
- Wiring:
- Single-pair cable
- Cable Type:
- Solid PE-insulated pair cable 0.65-1.0 mm
- Operating Temperature:
- 0-40 C
- Mounting:
- Din Rail Mount
- Dimensions:
- 210 mm W x 108.5 mm H x 61 mm D
- Weight:
- Approx. 330 g
