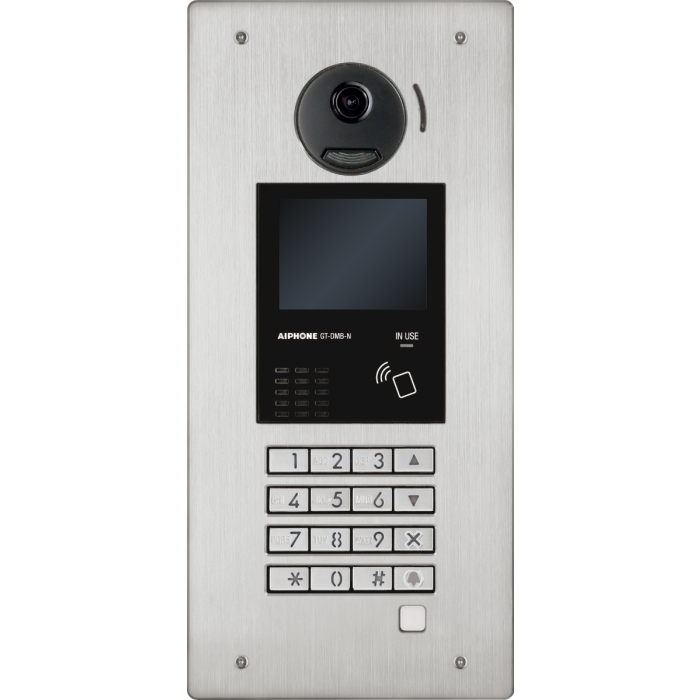

GTDMBN Aiphone GT 3 In 1 Video Entrance Station With NFC
The GTDMBN is a 3-in-1 video entrance station with NFC for the Aiphone GT Series multi-tenant video intercom system. It combines a stainless steel panel, PTZ camera, direct-dial keypad, 3.5 inch colour LCD, tenant directory functions and access-code entry.
It suits main multi-tenant entrances where visitor screening, tenant search and authorised entry need to be handled from one station. The station uses common bus wiring, 24 V DC power and flush or surface mounting options with the specified mounting boxes.
Key Features
- Combines video, audio, directory and access-code functions in one GT entrance station.
- Wide-angle PTZ camera helps tenants or staff identify visitors before entry is released.
- Directory and direct-dial functions support buildings with large resident lists.
- USB and NFC programming options make tenant data and access-code setup more practical.
- Motion-activated colour LCD supports a clearer visitor interface at the entrance.
- Catalogue Family:
- INTERCOM
- Model:
- GTDMBN
- Product Type:
- INTERCOM
- Power:
- 24 V DC USING SPECIFIED PS-2420UL QUANTITY PER SYSTEM CONFIGURATION
- Display:
- 3.5 INCH COLOUR LCD
- Camera:
- 1/4 inch colour CMOS PTZ camera
- Viewing Angle:
- 170 degree wide-angle view
- Communication:
- HANDS-FREE FROM ENTRANCE STATION TO TENANT STATION
- Capacity:
- UP TO 500 TENANT STATIONS PER SYSTEM
- Wire:
- Two sets of 2-conductor PE insulation common buses for audio and video
- Mounting:
- FLUSH WITH GF-3B BACK BOX OR SURFACE WITH SBX-GTDMB BOX
- Operating Temperature:
- -30 TO 60 C
- Weight:
- Approx. 1.2 kg
- Series:
- GT SERIES
