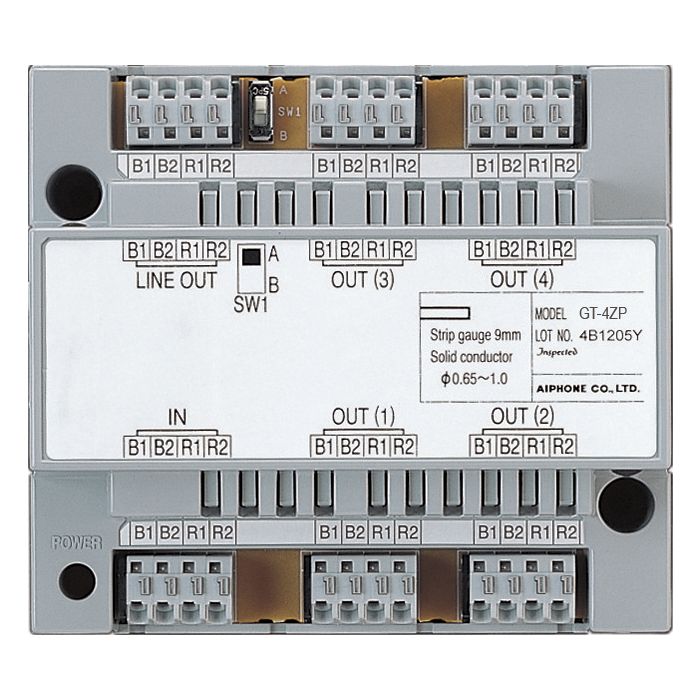

GT-4ZP Aiphone GT Series 4-Way Distribution Adaptor for GT-1C7W-L
The GT-4ZP is an Aiphone GT Series 4-way distribution adaptor for GT-1C7W-L app-enabled tenant stations. It operates on 24V DC, requires one PS-2420DM power supply per adaptor, and is supplied with four GTW-24J power jumpers.
Designed for GT riser and distribution installations, the adaptor allows a single PS-2420DM power supply to support up to four compatible tenant stations. It is also suitable for replacing existing GT-4Z adaptors in GT system upgrades using GT-1C7W-L tenant stations.
Key Features
- Allows one PS-2420DM power supply to support up to four compatible GT tenant stations.
- Suitable for replacing GT-4Z adaptors in compatible GT system upgrades.
- Supplied with four GTW-24J power jumpers for tenant-station connections.
- DIN-rail mounting supports installation in risers and equipment enclosures.
- Supports cable runs of up to 50 m between the adaptor and tenant station.
- Catalogue Family:
- INTERCOM
- Model:
- GT-4ZP
- Product Type:
- Intercom
- Associated Tenant Station:
- GT-1C7W-L app-enabled tenant station
- Power:
- 24V DC, one PS-2420DM per GT-4ZP
- Mounting:
- 7 DIN modules
- Contents:
- 1 x GT-4ZP, 4 x GTW-24J
- Dimensions:
- 108 mm H x 122 mm W x 61 mm D
- Operating Temperature:
- 0 deg C to 40 deg C
- Gt-4zp to Tenant Station Distance:
- Max. 50 m
