Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

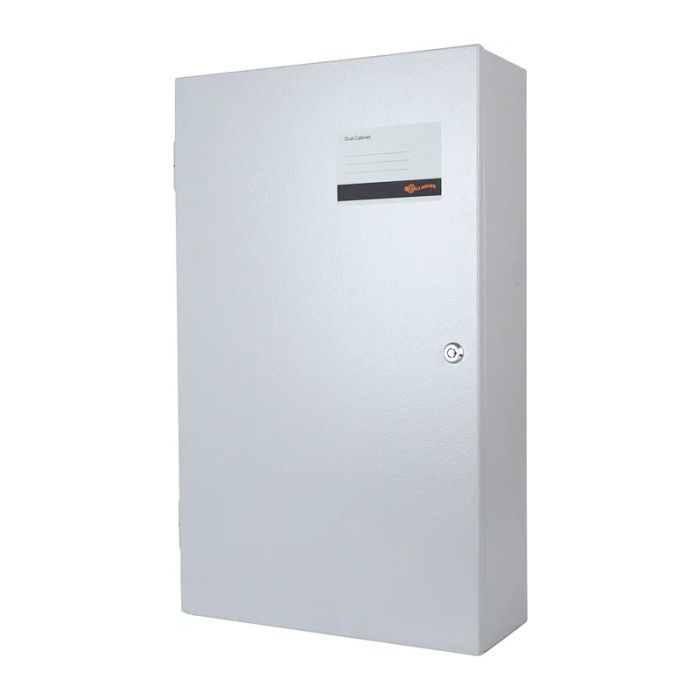

C200105 Gallagher Dual Steel Cabinet with 8 A Power Supply Cool Grey
The Gallagher C200105 is a cool grey secure steel cabinet with an 8 A power supply and two PCB footprints. It accommodates combinations of Gallagher controllers and I/O devices within a dual-footprint enclosure.
Optical tamper protection covers the front and rear of the cabinet when the PCBs are correctly installed. The power supply provides visible low-mains and low-battery indicators, with power monitoring supported through Gallagher Command Centre alarms.
Key Features
- Approximately 1 mm thick steel construction provides a secure equipment enclosure
- Two PCB footprints support flexible Gallagher hardware combinations
- Power supply accepts a 100-240 V AC input for broad installation requirements
- Short-circuit overload and overvoltage protection safeguard connected equipment
- Battery-low and reverse-polarity protection support reliable power management
60 MONTHS
- Catalogue Family:
- POWER SUPPLY
- Model:
- GALC200105
- Manufacturer Model:
- C200105
- Product Type:
- DUAL ENCLOSURE
- Finish:
- COOL GREY
- Dimensions:
- 624 mm (H) × 372 mm (W) × 150 mm (D)
- Weight:
- 6.8 kg
- PCB Footprints:
- 2
- Material:
- METAL
- Humidity:
- 90% NON-CONDENSING
- Compliance:
- RCM, CE
- Colour:
- COOL GREY
