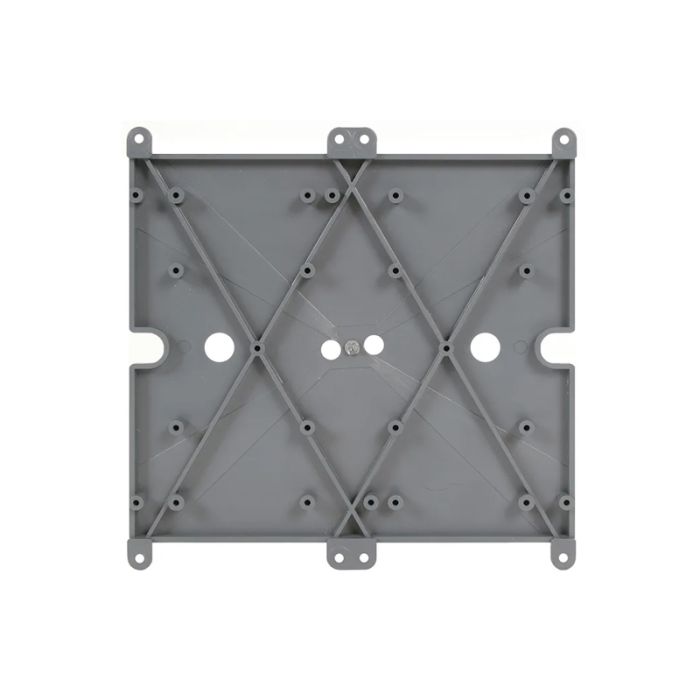

C200001 Gallagher Full-Footprint Mounting Plate
The Gallagher C200001 Full-Footprint Mounting Plate is designed to align with the screw holes of a full Gallagher Cabinet footprint. It provides a structured mounting base for installing Gallagher printed circuit boards within compatible cabinet layouts.
The plate can accommodate one full-footprint PCB, two half-footprint PCBs or four quarter-footprint PCBs. It can also support combinations of Gallagher PCBs when integrating compatible hardware into third-party cabinets.
Key Features
- Matches the Gallagher full-footprint screw pattern for straightforward cabinet installation
- Adapts to full half or quarter-footprint PCB configurations
- Accommodates up to four quarter-footprint boards on one mounting plate
- Allows different Gallagher PCB sizes to be arranged within a planned layout
- Supports Gallagher hardware integration within suitable third-party cabinets
60 MONTHS
- Catalogue Family:
- ENCLOSURES
- Model:
- GALC200001
- Manufacturer Model:
- C200001
- Product Type:
- MOUNTING PLATE
- Mounting Capacity:
- 1 × 1-footprint PCB, 2 × 1/2-footprint PCBs, 4 × 1/4-footprint PCBs, or compatible combinations
- Compatible Cabinet:
- Full Gallagher Cabinet footprint and third-party cabinets
- Series:
- SMB
- Colour:
- GREY
- Features:
- DESIGNED TO FIT THE SCREW HOLES OF A FULL GALLAGHER CABINET FOOTPRINT.
