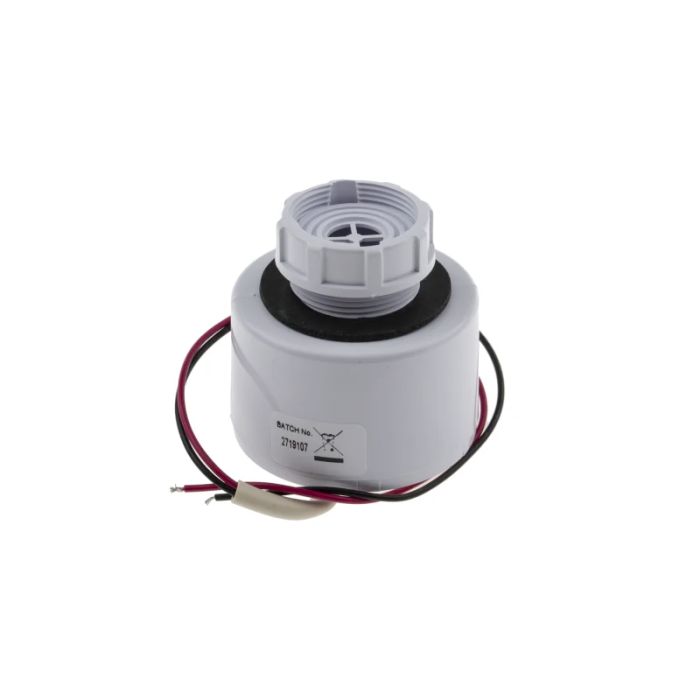

FUL020 Askari Panel Mounting Process Sounder - IP65
FUL020 is an Askari panel mounting process sounder with a panel-mount design, single-nut fixing, 32 selectable tones, two alarm stages, an operating voltage of 9-28 VDC or 24 VAC, and an IP65 rating.
Suited to process and industrial equipment environments, this sounder gives installers a neat way to add local audible indication where panel space is limited. Its ABS construction, IP65 protection rating and -25 degrees C to +70 degrees C operating temperature range support use across demanding internal or exposed equipment locations.
Key Features
- Compact fascia-mount design helps integrate audible signalling into control panels and equipment housings.
- Single nut fixing supports a straightforward installation with a clean panel finish.
- Selectable tone and two-stage alarm capability gives the sounder flexibility for different alert states.
- Wide AC/DC supply support suits common process and control equipment power arrangements.
- IP65-rated ABS housing helps the unit suit industrial environments where protection from dust and water ingress matters.
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Voltage:
- 9-28 VDC or 24 VAC
- Current:
- 18 mA typical on tone 3
- Sound Output:
- 92 dB(A)
- Tones:
- 32
- Alarm Stages:
- 2
- Operating Temperature:
- -25 degrees C to +70 degrees C
- Protection Rating:
- IP65
- Construction:
- ABS
- Weight:
- 0.9 kg
- Colour Options:
- Red or white
