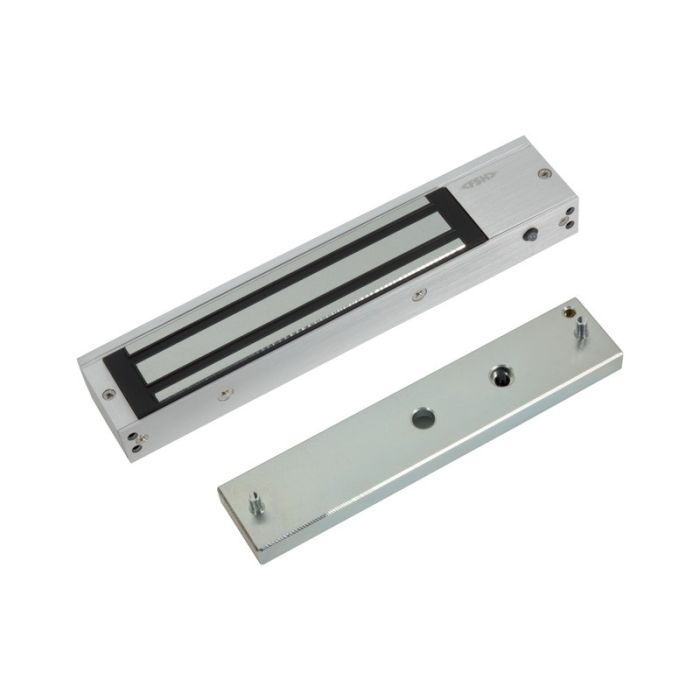

FEM4300M FEM4300 Series Single Monitored Electromagnetic Lock
FEM4300M is an FSH FEM4300 Series single monitored electromagnetic lock for indoor dry-use access control. The monitored model is listed with 12/24 VDC operation and Lock Status Sensor and Door Status Sensor outputs for remote status monitoring.
The FEM4300 range is used on commercial access-controlled doors where a slim maglock body, monitored door status and a clean fail-safe locking method are required. The range includes up to 280kg holding strength for the single magnetic lock, no residual magnetism, monitored LED indication and fire-rated testing in accordance with AS1905.1:2015.
Key Features
- Supports monitored access-control doors with lock and door status feedback
- Selectable 12/24 VDC operation helps suit common regulated DC power supplies
- Slim FEM4300 format assists installation where door headroom is limited
- No residual magnetism supports cleaner release when power is removed
- Red and green LED indication gives a quick local view of lock and door state
- Monitored:
- Monitored
- Holding Force:
- 280Kg
- PTO/PTL:
- Power To Lock (Fail Safe)
- Mounting:
- Surface Mount
- Product Type:
- Locking
