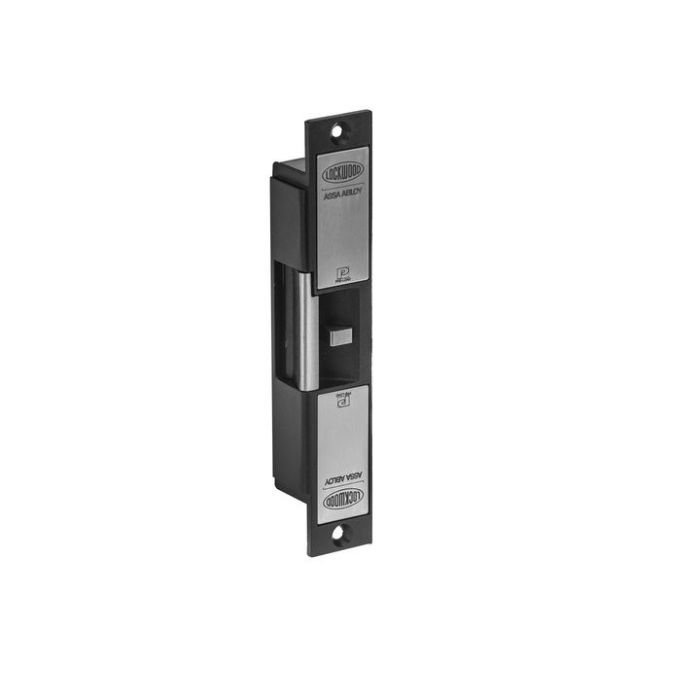

ES9000-LIPLESS Lockwood ES9000-010 Pre-Load Electric Strike - Lipless 10-30 VDC
The ES9000-LIPLESS is the Lockwood ES9000-010 pre-load electric strike, a monitored lipless variant in the ES9000 Series. It provides 10-30 VDC operation, field selectable fail safe/fail secure configuration, 1300 kg static holding force and operation under up to 25 kg of pre-load pressure.
It is designed for demanding commercial access-control doors where preload can be caused by pulling on the door, door movement, seals or air pressure. The lipless ES9000-010 format supports installations that require the no-lip version while retaining the monitored, stainless steel ES9000 performance platform.
Key Features
- Pre-load operation supports doors affected by side pressure before release
- Field selectable fail safe/fail secure setup provides on-site configuration flexibility
- Fully monitored switching supports latch and solenoid status feedback
- Lipless variant suits installations where a no-lip ES9000 body is required
- Weather-resistant IP54 construction supports protected external or demanding commercial use
- Monitored:
- Monitored
- Holding Force:
- 1300Kg
- PTO/PTL:
- Ptl/Pto Field Changeable
- Product Type:
- Locking
